Belt Width： Up to 2.4m
Belt Length： Up to 10,000m
Handling Capacity： Up to 10,000 m³/h
Belt Speed： Up to 6.0m/s
Max Incline：Maximum 25º
Drive Type：Motorized pulley | Geared motor unit | Motor+fluid coupling+gear box
Belt Options：Antistatic, Hard wearing, Fire/Oil /Corrosion resistant
Take-up Device：Below 100m: Screw type | Above 100m: Gravity type or Car type
Construction Materials: Stainless, coated mild steel or galvanised mild steel
Address: Middle of Xinchang North Line, Xinxiang City, Henan Province, China
PRODUCT INTRODUCTION
Share:
The belt conveyor is one of the best options for bulk materials handling equipment .It can continuously transport materials from one place to another place. Belt conveyor consist of conveyor belt, pulley, idlers, frame, tension devices, driving unit, protection switches and other components etc.
Belt conveyor can convey any type of bulk material – whether powdery, granular, lumpy or bagged – whether cohesive or noncohesive – in almost all industrial fields.
Belt conveyor conveys various materials through the rubber conveyor belt, which riding on heavy-duty troughed idlers, ranging in angles from 20°-45°, each mounted to the steel idler bracket. Belt conveyors can convey material at various inclined angles,typically between 0°-25°.
Application Industries
Coal-fired Conveying System
In Thermal Power Plant
Storage Yard Transfer Conveying System In Port
Raw Material Conveying System

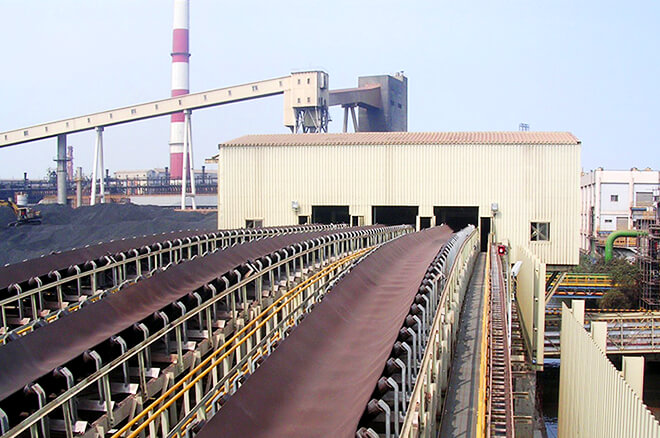

In Steel Mill
Long Distance Conveying System

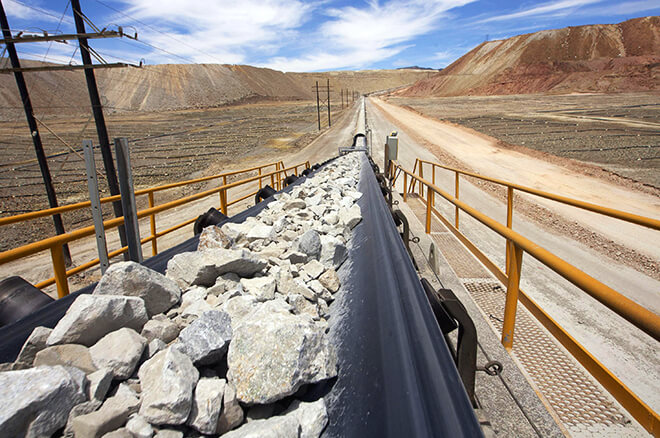

In Open-pit Mine
Bulk Material Conveying System

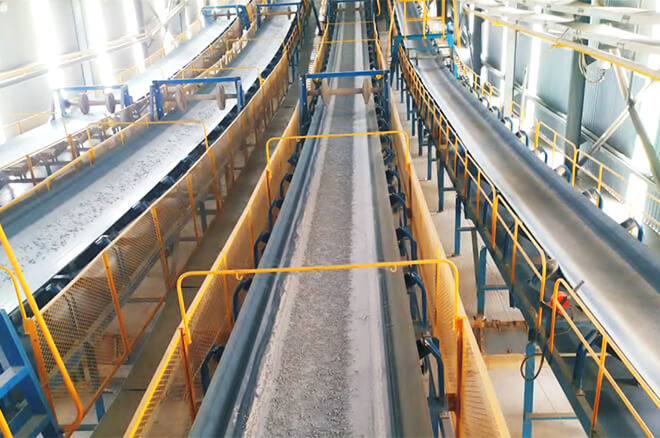

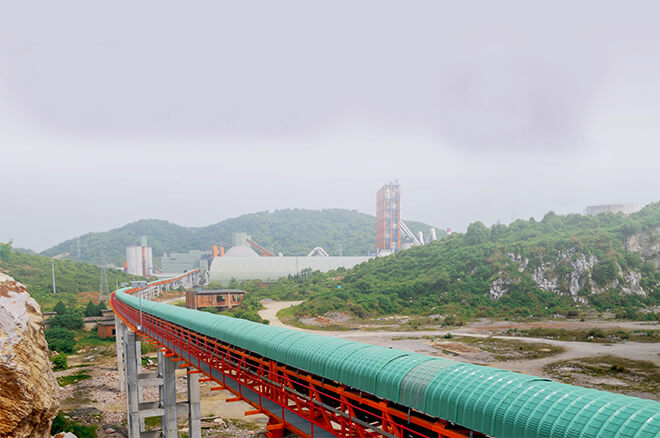

In Cement Plant
Sand-Aggregate Conveying System
In Crushing Station
► Optional various types of self-aligning idlers can effectively prevent belt deviation.
► Stable operation, no relative movement between the material and the conveyor belt, to prevent materials spillage and damage.
► Skirts fitted at the feeding point and fully sealed hood at the head section, improve the working environment.
► All kinds of protection switches give early warning of possible accidents, and protect the components from being damaged.
► Equipped with all kinds of advanced instruments and sensors, not only can realize automatic centralized control, but also can reduce
maintenance personnel, save labor costs.
► Adopts modular design to make spare parts interchangeable, thus reducing the purchase cost.
► Rapid replacement of spare parts, significantly reducing costly downtime.
ADVANCED PROCESSING TECHNOLOGY OF BELT CONVEYOR MAIN COMPONENTS
Belt Width, Belt Speed & Hnadling Capacity of Technical Parameters
REMARK: Handling capacity is calculated according to the horizontal conveying, the running accumulation angle is 20° and the idler
groove angle is 35°
Selection instructions
1. Material to be conveyed:______
2. Handling capacity: ______ t/h
3. Bulk Density:______ t/m3
4. Center distance between the head and tail pulley:______ m
5. Max. granule size of the feeding material:______ mm
6. Max. Granule's percentage in whole material:______ %
7. What equipment is used to feed the material into the belt conveyor :______
8. What equipment is used to discharge the material from the belt conveyor :______
9. Working power supply: ______ V ______ HZ
10. Does the belt conveyor work alone or with other equipment to form a system? If forming a system, do you have preliminary design or hand-drawn sketch? If have,please send it to our engineer for reference.
