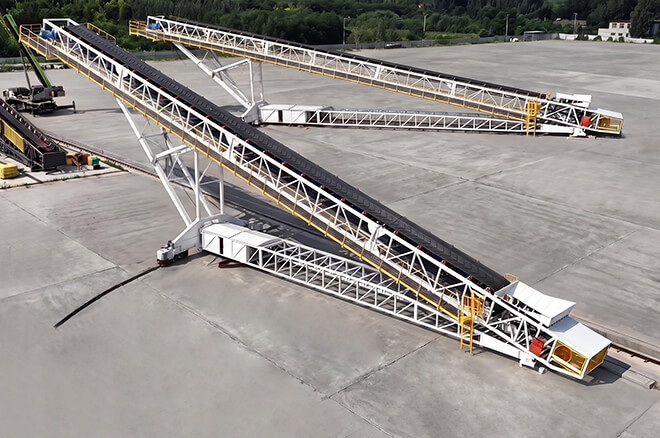

HOW IT WORKS

Two Stacking Configurations. One Continuous Material Flow.
The stacker receives bulk material from an upstream conveyor and continuously transfers it to the stockpile. Choose radial or telescopic mobile stacking to suit the site and stockpiling requirements.

01. Material Feeding

Material is discharged from an upstream conveyor onto the stacker.
02. Continuous Conveying
The belt carries material steadily toward the discharge end.
03. Choose Your Stacking Method

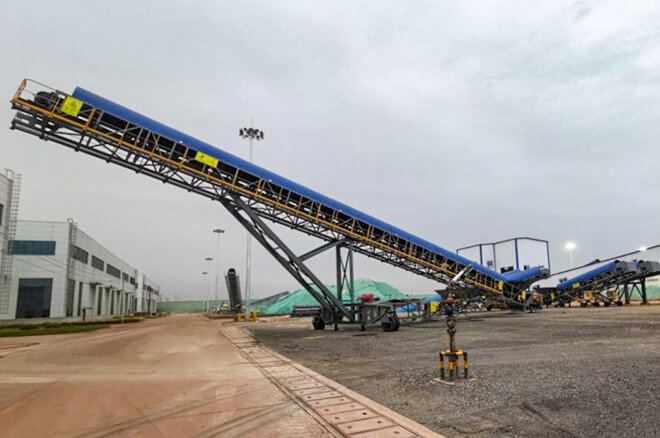

Radial Stacking
The boom pivots around a fixed tail point, moving the discharge end through an arc.

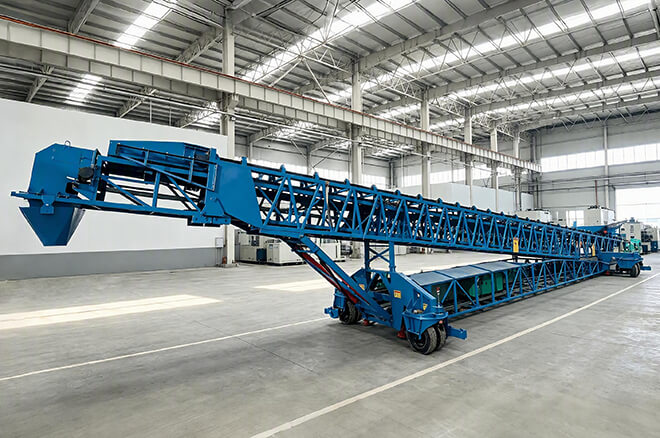

Telescopic Mobile Stacking
The conveyor extends or retracts, while the mobile chassis allows flexible repositioning.
04. Controlled Discharge
Discharge height and position are adjusted to suit the stockpile.
05. Stockpile Formation
Continuous conveying and controlled movement build the stockpile with less rehandling.

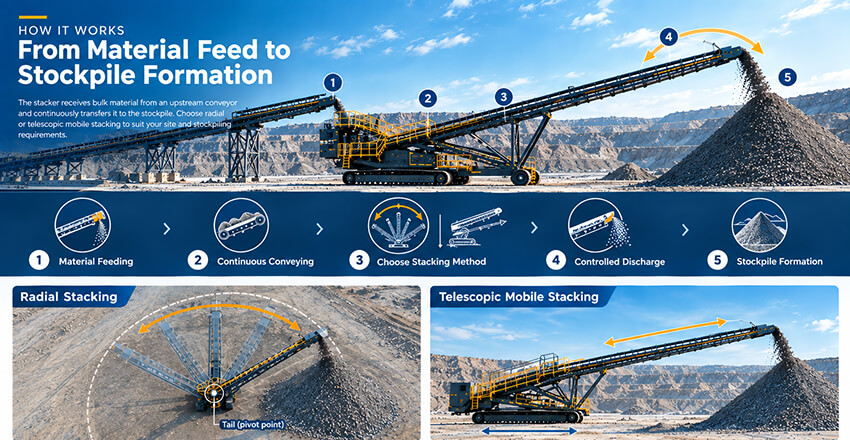

stacker conveyor working principle

FEATURES

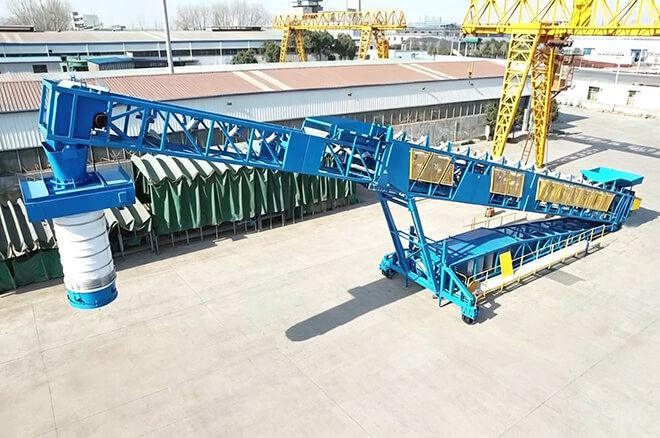

	Radial Stockpiling A pivoting boom spreads material across a broad arc, making better use of available stockyard space and creating a more consistent stockpile profile.		Mobile Deployment Wheeled and tracked configurations let the stacker move with the operation, making it easier to reposition as stockpile locations and site conditions change.
	Continuous Material Flow A heavy-duty belt conveyor handles large volumes of bulk material and maintains a steady flow between feeders, crushers, screens and stockpiles.		Less Material Handling Material can be placed directly onto the stockpile, reducing reliance on loaders for repeated movement and helping cut unnecessary handling and operating costs.
	Built for Heavy-Duty Service The conveyor frame, drive assembly, idlers and travel system are built around the loads and conditions found in mining, quarrying and bulk material operations.		Engineered for Integration Belt width, conveyor length, stacking radius, discharge height and mobility can be configured to suit the site, while the stacker integrates readily with crushing, screening and conveying systems.

basic parameter

Loading Capacity: ≦4000TPH

Conveyor Length: 25- 60m

Stacking Height: 9.3-18m (maximum height)

Drive: Electric

Mobility: Wheel type, Crawler-type (in-line, parallel, radial travel)

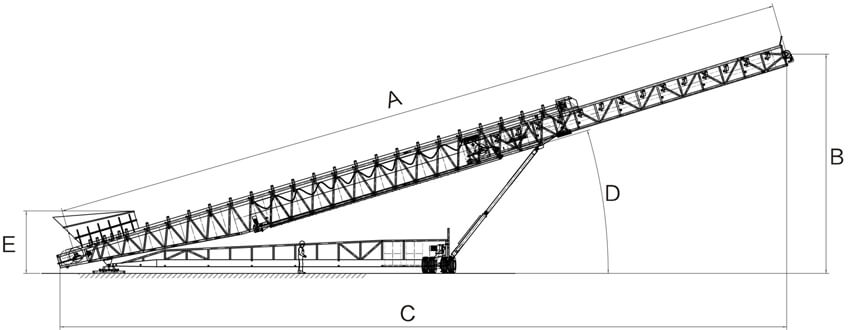

Specifications

Parameter	Specification
Parameter	33(23+10)m	40(28+12)m	46(31+15)m	52(33+18)m	60(40+20)m
A Length (m)	33	40	46	52	60
B Discharge height (m)	10.3	12	14.6	15.2	17.5
C Horizontal length (m)	32.6	41	46.4	47.8	57.4
D Maximum angle (°)	17	17	18	17	17
E Tail feeding height (m)	3.6	3.6	3.6	4	4

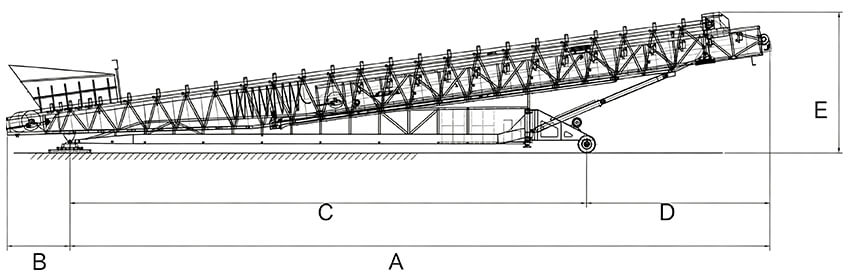

Specification	Specification
Specification	A	B	C	D	E
33(23+10)m	20.3	2.9	16	4.3	5.5
40(28+12)m	28.8	2.8	21.1	7.7	5.7
46(31+15)m	29.3	6.4	19	10.2	6.9
52(33+18)m	38.1	6	26.1	12	8.1
60(40+20)m	47.8	6	30	17.8	10

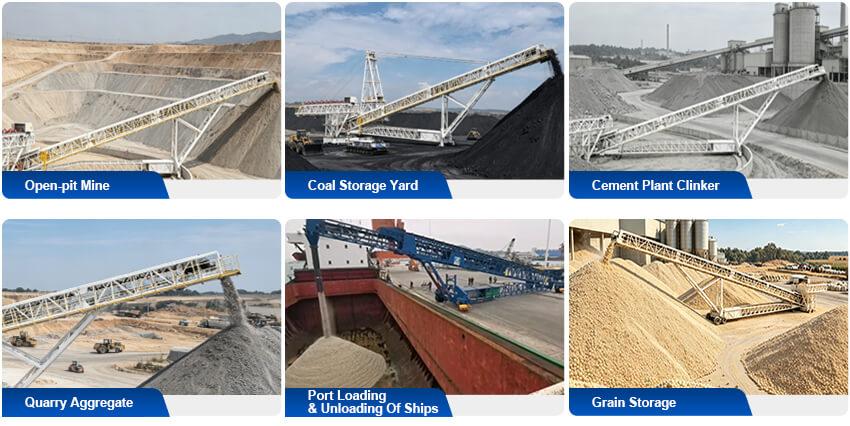

applications for stacker conveyor

FAQ OF STACKER CONVEYOR

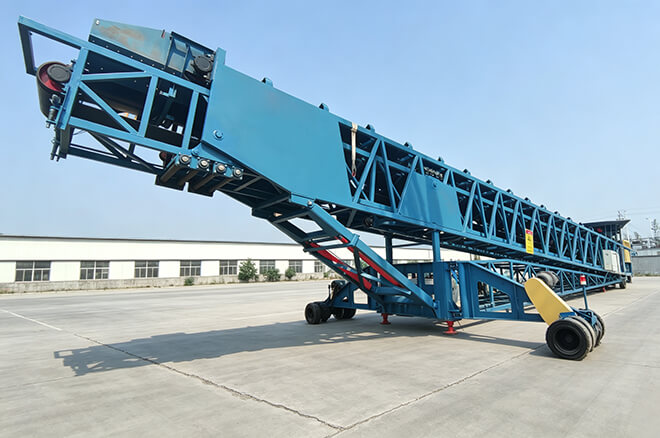

1. What is a radial stacker conveyor?
The mobile radial stacker is used for continuous conveying and stacking of bulk materials. It can rotate radially around the rear support point, expanding the stacking range and reducing secondary handling.

2. What are the differences between a radial stacker conveyor and a radial telescopic stacker conveyor?
The radial stacker expands the stacking range through the rotation of the boom; the radial telescopic stacker adds the function of boom extension, which can further adjust the discharge distance and stacking height.

3. What materials is the mobile radial stacker conveyor suitable for?
It is suitable for dry bulk materials such as coal, ores, limestone, sand and gravel, sand, gravel, etc. Customized conveying and protection systems can be provided according to the material characteristics.

4. How to choose the appropriate stacker conveyor?
The selection mainly depends on the processing capacity, material characteristics, belt width, conveying length, discharge height, stacking radius, moving mode and automation requirements.

5. Can the stacker conveyor be connected with crushing and screening equipment?
Yes. It can be integrated with crushers, screening machines, feeders and belt conveyors, and can achieve coordinated operation through PLC and equipment interlock.

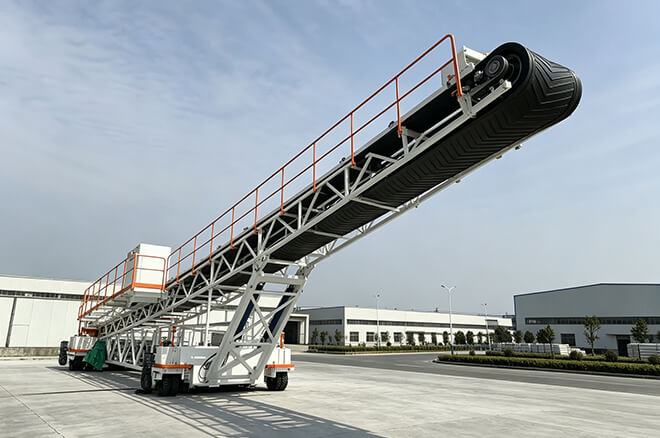

6. Does the mobile radial stacker conveyor use wheeled or tracked type?
It can be chosen as wheeled or tracked type according to the working conditions. Wheeled type is suitable for frequent relocation, while tracked type is suitable for on-site movement in mines, quarries and large storage areas.
