Conveyor Pulley

The conveyor pulley is a main part of the belt conveyor system which can draws the belt running, changes the running direction and tensions the belt etc. According to the purpose and installation position of the conveyor pulley, we can classify conveyor pulley into head pulley, tail pulley, bend pulley, snub pulley and so on. The conveyor pulley should bear the forces imposed by both conveying load and belt tension.
Products
Application
Contact Us
Tel:
Mobile:
Whatsapp:
Wechat:
E-mail:
Skype:
Https:
Address:  Middle of Xinchang North Line, Xinxiang City, Henan Province, China
Conveyor Pulley Structure & Features

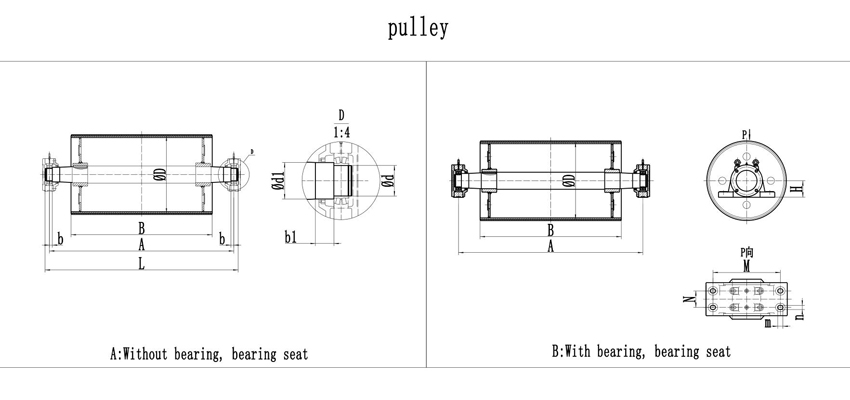

conveyor pulley structure

Different types of Laggings can meet all kinds of complex engineering requirements.
Advanced welding technology ensures the connection strength between Shell and End-Disk.
High-strength Locking Elements can satisfy torque and bending requirements.
T-shape End-Discs provide highest performance and reliability.
The standardized Bearing Assembly makes it more convenient for the end user to replace it.
Excellent raw material and advanced processing technology enable the shaft can withstand enough torque.
Low maintenance for continued operation and low total cost of ownership.
Scientific design process incorporating Finite Element Analysis.
BASIC INFORMATION

Classes

CEMA/Heavy Duty/Mine Duty/Extreme Duty/True Engineered Class

Pulley Dia 150 — 2,500mm
Face Length 300 — 3,000mm
Shaft Dia Up to 585 mm
Lagging Type Diamond/Plain/Ceramic/Chevron/Circumferential/Replaceable slide lag
Bearing Brands SKF, FAG, NSK, LYC, HRB, or ZWZ
DIFFERENT KINDS OF CONVEYOR PULLEYS
belt conveyor pulley

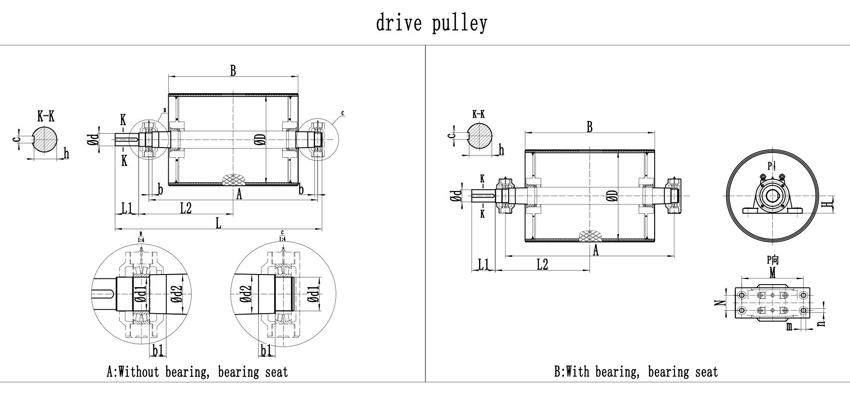

1.Drive pulley

2.Tail pulley

Drive pulleys, which can also be the head pulley, are driven by power transmission unit to propel the belt and material to the discharge. For better traction, the head pulley is usually lagged.

The tail pulley is located at the end point of the belt conveyor. It comes with either a flat face or a slatted profile (wing pulley), which cleans the belt by allowing material to fall between the support members.

3.Bend pulley

4.Snub pulley

The Bend Pulley is used for changing the direction of the belt. The Bend Pulley is usually installed at the tail part or the vertical take-up device when the belt direction need to 180°bending.

A snub pulley improves the traction of the drive pulley, by increasing its belt wrap angle.

lagging materials of conveyor pulley
diamond lagging pulley

ceramic lagging pulley

 Diamond Lagging Pulley

Ceramic Lagging Pulley
bend pulley

chevron coating  pulley

 Plain Lagging Pulley

Chevron Lagging  Pulley
CONVEYOR PULLEY PROCESS EQUIPMENT

pulley process equipment
