Apron Feeder

The apron feeder is a reliable feeding method for when the material to be conveyed is lumpy, abrasive, heavy, high temperature. it is a feeding solution more robust than a traditional belt feeder is required.
Apron feeders are designed to feed material at a desired handling capacity to downstream equipment. The conveyed material is on many overlapping pans attached to multiple strands of a heavy tractor crawler-type chain.
Products
Application
Related cases
Heavy-Duty Apron Feeder
Heavy-Duty Apron Feeder for Heilongjiang Duobaoshan Expansion Project
Contact Us
Tel:
Mobile:
Whatsapp:
Wechat:
E-mail:
Skype:
Https:
Address:  Middle of Xinchang North Line, Xinxiang City, Henan Province, China
Why Choose EXCT Apron Feeders
heavy duty apron feeder

apron feeder design

apron feeder manufacturer toool

Experienced engineers team provides scientific and reasonable
technical solutions of apron feeder for each end user.

Excellent tooling, skilled technical workers, 30+years
of production experience to ensure the quality of
apron feeder reliability.

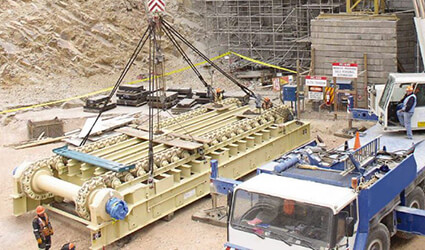

apron feeder installation and trial run

apron feeder manufacturer toool

+200 successful cases of apron feeder in 40 countries and
regions around the world.

Fast after-sale service, sufficient spare parts reserve
to ensure the longcycle stable operation of apron feeder.

Main applications for Apron Feeders

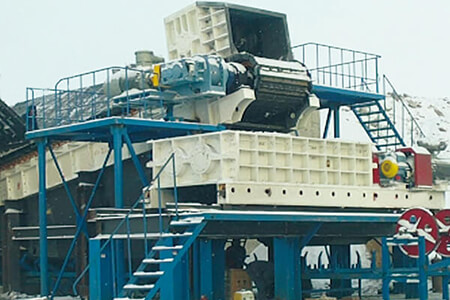

crusher apron feeder

Wagon unloading apron feeder

Crusher feeding
One machine covers full range of materials (cement, iron ore, sand, coal, limestone, fertilizers and so on.)
Unloading of material of any size range,size up to 1,500 mm
Suitable for a wide variety of abrasive materials
Each unit is tailor-made to suit crusher.

Wagon unloading
Receive mine material directly from dump trucks
Unloading of multiple trucks at once
Suitable for unloading in combination with other transportation equipment
High impact load resistance.

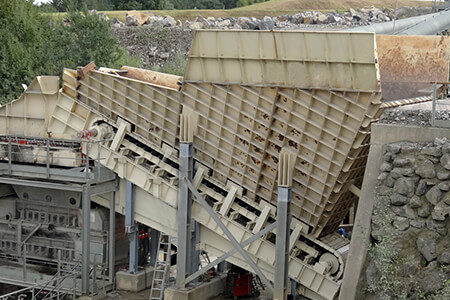

hopper apron feeder

crusher apron feeder

Hopper discharge
Pan of width up to 3,000 mm suitable for large block materials
Vertical or even negative angle walls for extremely sticky materials
Reasonable pan shape design for better cleaning

Stockpile discharge
Several short apron feeders in series
Unlimited on the height of material stockpile
Heavy duty design ensures Reliable material Extraction
features
1. Standard heavy-duty ribbed pans prevent excessive deflection under high-impact loading & severely abrasive working conditions.
2. Cast segmental track chain bolted to heavy steel hubs
    keyed to oversized front drive shaft.
3. Standard crawler-type undercarriageparts have a long
    service life.
4. Rugged steel support frame with impact rails to limit pans deflection, thus eliminating permanent bending of the pans
5. The heavy-duty design delivers high availability, ease of operation, low maintenance and operational costs and greater profits.

apron feeder catalogue
main component & FEATURES
apron feeder pan

apron feeder sprocket

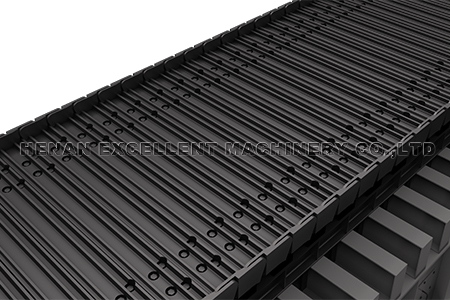

Pans
According to different working conditions, we will choose the most suitable design to meet your requirements. For example, we use manganese pans to replace cast steel pans, with a longitudinal center rib, avoiding excessive deflections under high-impact loading and severely abrasive working conditons.

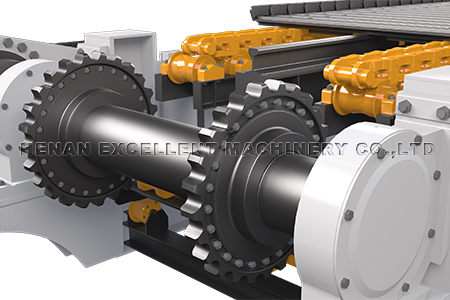

Sprocket
Sprocket design features three cast manganese alloy steel segments that allow replacement of one segment at a time, without needing to dismantle the feeder or remove the chain, pans, skirts and material on the feeder.
Rather than taking multiple shifts to change out the drive sprockets, the upgraded design allows a changeout in just hours. In addition, a half-tooth design with an odd number of teeth is used to allow contact with the chain during every second revolution, which doubles the life of the sprockets.
apron feeder chains

apron feeder roller

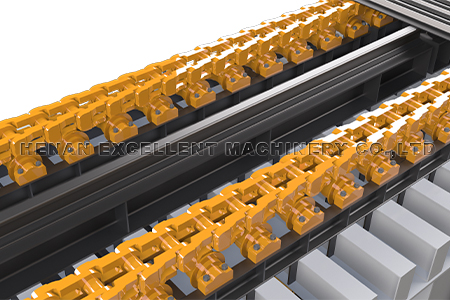

Chains
The track chain is used in our apron feeder, because the pin and bush are made of heat-treated alloy steel. To withstand greater weight, the chain link is made by drop forging, which can effectively prevent the external sands entering, thus, prolong the chain life.

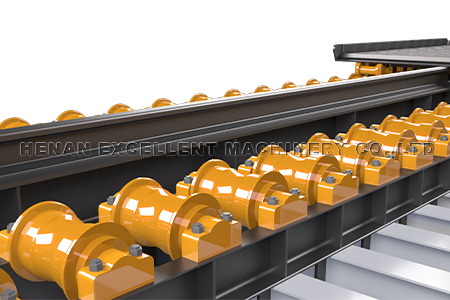

Rollers
Single flange tractor type rollers are mounted on support members in groups of 2 to 4 units to make disassembly and replacement easier.
SUCCESS PROJECT IN VARIOUS INDUSTRIES

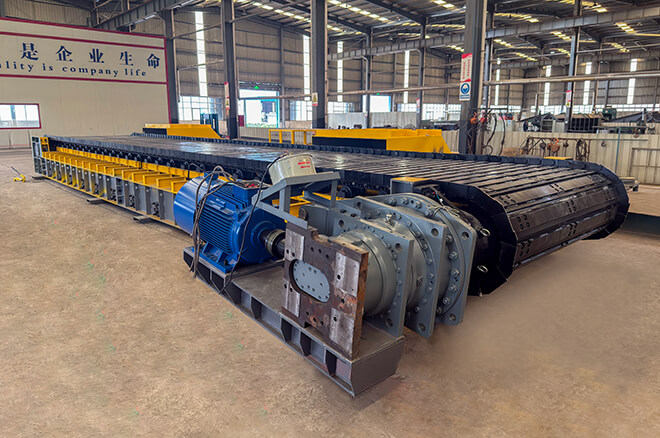

apron feeder for coal

Project Name: Heilongjiang Duobaoshan Copper Co., Ltd. Phase II Expansion Project
Equipment Model: BL1600-11.0
Pan Width: 1,600mm
C-C Distance: 11,000mm
Angle of Installation: 0°
Handling Material: Prophyry Copper Mine
Handling Capacity: 2,000t/h
Customer Name: Heilongjiang Duobaoshan Copper Co., Ltd.

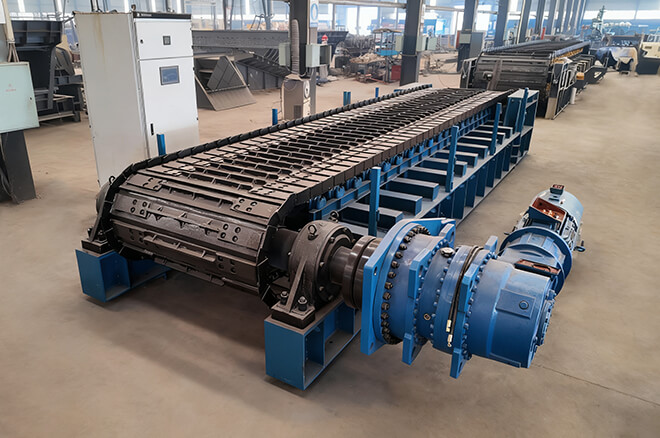

apron feeder


Project Name: Limestone crushing & screening system for Qinghai Construction Co.,Ltd.
Equipment Model: BL1800-6.0
Pan Width: 1,800mm
C-C Distance: 6,000mm
Angle of Installation: 12°
Handling Material: Limestone
Handling Capacity: 1,200t/h
Customer Name: Qinghai Construction Co.,Ltd.


Project Name: Coal crushing & screening & conveying project for Xinjiang Zhongtai Chemical Co., Ltd
Equipment Model: BL2400-9.0
Pan Width: 2,400mm
C-C Distance: 9,000mm
Angle of Installation: 10°
Handling Material: Coal Gangue
Handling Capacity: 2,500t/h
Customer Name: Xinjiang Zhongtai Chemical Co., Ltd



Selection instructions

1.Which material to be handling:______
2.Handling capacity: ______t/h
3.Material density: ______t/m³
4.Center distance between the head sprocket and tail sprocket :______m
5.Is the layout of the apron feeder inclined or horizontal ? If it is inclined,what is the inclined degree______°
6.Max. granule size of the feeding material: ______mm
7.Max. Granule’s percentage in whole material:______ %
8.What equipment is used to feed the material into the apron feeder:______
9.What equipment is used to discharge the material from the apron feeder:______
10.Working power supply: ______V ______HZ
11.Required quantity: ______
12. Under normal circumstances, the upstream equipment of the apron feeder is the hopper. In order to facilitate our engineers to calculate the power of the apron feeder, can you provide the preliminary design scheme or hand-drawn drawings of the hopper?
