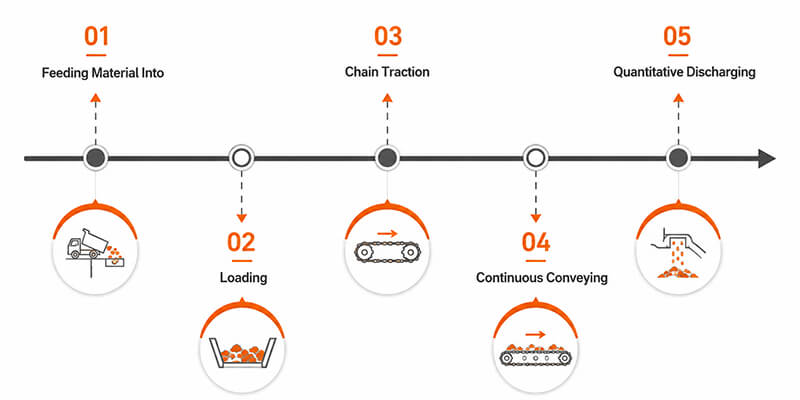

After the materials enter the receiving area of the Surface Feeder, a certain layer of materials is formed on the heavy-load-bearing structure, and the load-bearing plate driven by the chain continuously moves forward. The chain movement causes the materials to move along the direction of the equipment. The frequency drive adjusts the running speed to control the amount of material discharged per unit time, thereby achieving continuous and uniform material discharge.
Minimal Civil Works
Low-profile, modular design minimizes foundation requirements and speeds up installation and commissioning.
Heavy-Duty Impact Resistance
Reinforced receiving and load-bearing structures withstand direct loading and continuous impact from large material loads.
Controlled, Consistent Feeding
Variable-frequency drive control enables continuous conveying and precise feed-rate adjustment.
Direct Receiving & Reclaiming
Handles direct truck, loader, and dozer feeding as well as stockpile reclaiming, reducing secondary material handling.
Flexible System Integration
Standardized discharge design enables seamless integration with conveyors, screens, and other downstream equipment.
Built for Continuous Duty
Heavy-duty wear-resistant components deliver reliable performance in demanding continuous-duty applications.
Frequently Asked Questions
Practical answers to the key questions engineers, EPC contractors and mine operators consider when selecting a Surface Feeder.

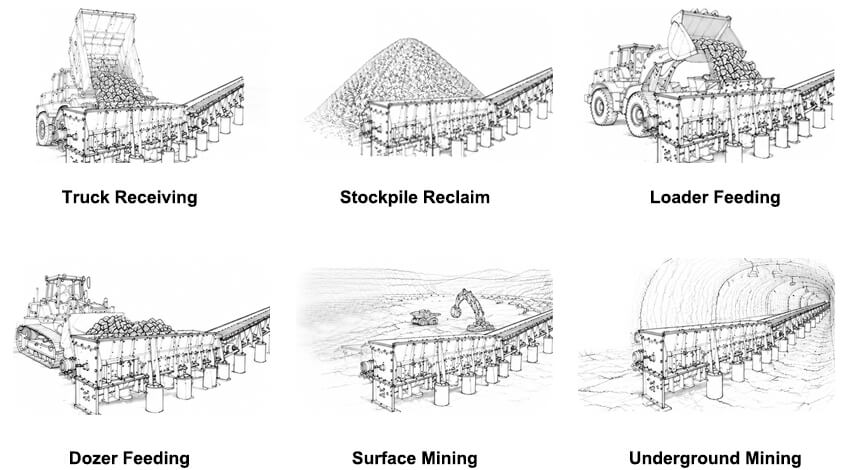

01. Can the Surface Feeder directly receive materials from mining trucks or loaders?
Yes. The low-profile receiving structure enables mining trucks, loaders and bulldozers to directly load materials without the need for large traditional hoppers, reducing construction costs and enhancing the flexibility of on-site layout.
02. Can it directly recover materials from the stockpile?

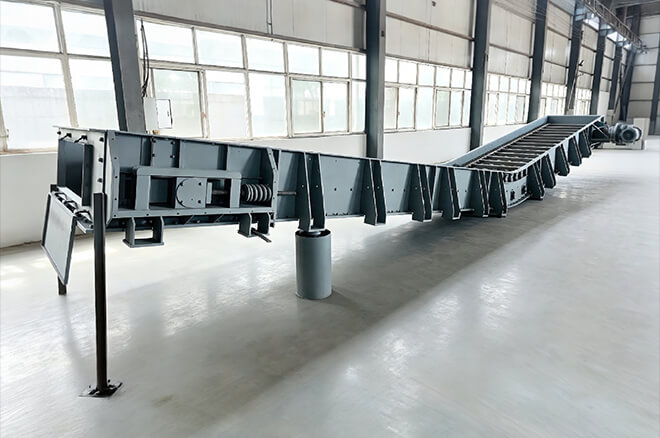

Yes. When used as a Reclaim Feeder, it can continuously recover materials from the Stockpile and steadily transport them to crushers, sizers or belt conveyors, reducing the need for secondary loading by the loader.
03. Won't it be unable to withstand impacts when encountering large ROM materials?
No. The receiving area and bearing structure are designed with enhanced strength for large, high-drop and heavy-load impacts, and are equipped with wear-resistant components, suitable for harsh mining conditions.
04. Can it be integrated with Mineral Sizer, Crusher, Belt Conveyor to form a complete system?
Absolutely. The Surface Feeder can serve as the system's front end, seamlessly integrating with crushing, screening and conveying equipment to achieve a complete material handling process from loading to continuous transportation.
05. Is the Surface Feeder only available in one standard configuration?
No. The equipment can be flexibly configured based on production capacity, material particle size, loading method, installation space and mobility requirements, enabling true customization for specific working conditions.
