Corrugated Sidewall Belt Conveyor

Corrugated sidewall belt conveyor, having the advantages of the universal belt conveyor, such as the simple structure, reliable operation, convenient maintenance etc. It also has the characteristics of large angle transmission, compact structure, and small footprint. This is the ideal equipment for conveying materials with large inclination angles and vertical lifting.
Products
Application
Contact Us
Middle of Xinchang North Line, Xinxiang City, Henan Province, China
Structure
Sidewall belt conveyor mainly consists of corrugated conveyor belt, driving device, transmission roller, reversing roller, pinch roller (roller), idler roller, anti-rolling roller, cleaning device, tensioning device, various It consists of a frame, a guide trough, a discharge chute, electrical and safety protection devices.
When the conveying angle of the ordinary belt conveyor cannot be reached, the Sidewall belt conveyor is used for conveying. The Z-shaped shape has wavy retractable ribs on both sides of the conveyor belt, and the middle part of the conveyor belt is added. The partition plate makes the whole conveyor belt contain a plurality of small bucket type partitions, and when the materials are transported to a high place, the material does not fall.
sidewall belt conveyor

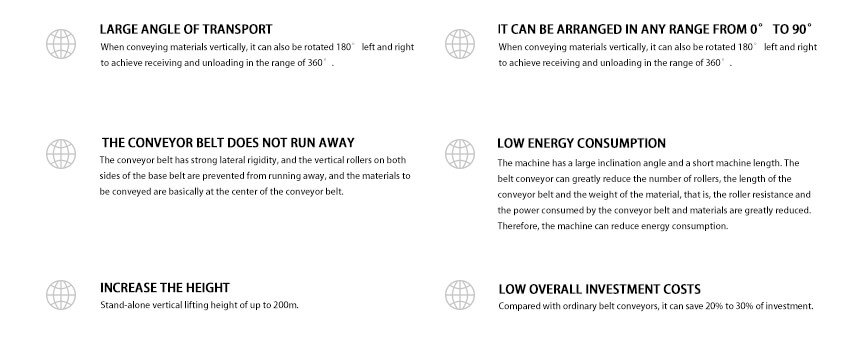

OUTSTANDING ADVANTAGES
1. Large angle of transport
A large amount of equipment space is saved, and the conveying angle that can not be achieved by ordinary belt belt conveyors can be achieved.
2. Low overall investment costs
Compared with ordinary belt conveyors, it can save 20% to 30% of investment.
3. Increase the height
Stand-alone vertical lifting height of up to 500m
4. It can be arranged in any range from 0° to 90°.
When conveying materials vertically, it can also be rotated 180° left and right to achieve receiving and unloading in the range of 360°.
5. Low energy consumption
The machine has a large inclination angle and a short machine length. The belt conveyor can greatly reduce the number of rollers, the length of the conveyor belt and the weight of the material, that is, the roller resistance and the power consumed by the conveyor belt and materials are greatly reduced. Therefore, the machine can reduce energy consumption.
6. The conveyor belt does not run away
The conveyor belt has strong lateral rigidity, and the vertical rollers on both sides of the base belt are prevented from running away, and the materials to be conveyed are basically at the center of the conveyor belt.
WHY CHOOSE EXCT Corrugated Sidewall Belt Conveyor
 sidewall belt conveyor
Corrugated Sidewall Belt Conveyor APPLICATE INDUSTRY
 sidewall belt conveyor industry grain  sidewall belt conveyor industry mining  sidewall belt conveyor industry chemical
Grain Mineral processing Chemical
 sidewall belt conveyor industry casting  sidewall belt conveyor industry wast management  sidewall belt conveyor industry Power plants
Casting Waste management Power plants

CORRUGATED SIDEWALL
BELT CONVEYOR MATERIAL

 sidewall belt conveyor industry grain  sidewall belt conveyor material for sand  sidewall belt conveyor material for soil
Grain Sand Soil
 sidewall belt conveyor material for coal  sidewall belt conveyor material for ore  sidewall belt conveyor material for lime
coal Ore lime
Specifications
Corrugated Sidewall Belt Conveyor Technical Specifications
Belt
width
(mm)
sidewall
height
(mm)
cleat
spacing
(mm)
Inclination angle
30° 35° 40° 45° 50° 55° 60° 65° 70° 75° 80° 85° 90°
Capacity(m³/h)
500 80 126 42 38 36 31 28 25 22 20 18 16 15 13 11
252 23 20 18 16 14 13 12 - - - - - -
100 126 56 52 48 44 40 36 32 29 26 24 21 19 16
252 34 29 26 23 21 19 17 15 - - - - -
120 126 - - - - 58 53 48 44 39 35 32 28 24
252 49 44 39 34 31 28 25 23 20 - - - -
378 33 29 25 23 - - - - - - - - -
650 100 126 78 73 67 61 56 50 45 41 37 33 30 26 23
252 47 41 36 32 28 26 24 21 - - - - -
120 126 - - - - 81 75 68 61 56 50 44 39 34
252 70 61 54 48 43 39 35 32 29 - - - -
378 46 40 35 32 - - - - - - - - -
160 252 93 84 75 67 60 54 49 44 40 36 32 28 25
378 64 56 49 44 40 36 32 29 26 24 - - -
800 120 126 - - - - 106 98 89 80 72 65 58 51 46
252 93 80 71 63 56 51 46 42 38 - - - -
378 61 53 47 42 - - - - - - - - -
160 252 127 115 103 91 82 74 67 60 54 49 44 38 34
378 88 76 67 60 54 49 44 40 35 32 - - -
200 252 - - - - 135 122 110 100 90 81 72 64 55
378 144 126 111 99 89 80 72 65 60 53 47 42 36
504 110 96 85 75 - - - - - - - - -
1000 160 252 171 154 138 122 110 99 90 81 73 66 59 52 45
378 118 102 91 81 72 65 59 53 48 43 - - -
200 252 - - - - 182 164 148 134 121 108 97 85 75
378 193 164 149 133 119 108 98 88 79 71 64 56 48
504 148 129 113 101 - - - - - - - - -
240 252 - - - - - 242 221 200 180 162 144 127 111
378 273 248 223 199 179 161 146 132 119 107 95 84 73
504 221 192 170 151 136 - - - - - - - -
1200 160 252 214 193 173 154 138 124 112 102 92 82 73 65 57
378 148 128 113 101 91 82 74 69 60 - - - -
200 252 - - - 250 228 206 185 168 152 136 121 107 93
378 243 212 188 167 150 135 122 111 100 90 80 70 61
504 186 161 143 - - - - - - - - - -
240 252 - - - - - 303 278 251 226 203 181 160 136
378 342 311 280 250 224 202 183 165 149 134 119 105 91
504 278 241 213 190 170 - - - - - - - -
300 336 431 406 380 354 326 296 268 242 218 196 175 154 134
504 350 312 276 246 221 199 180 163 147 132 117 104 90
1400 200 252 - - - 301 274 247 224 202 183 164 146 129 112
378 292 255 226 201 181 163 147 133 120 108 96 85 73
504 224 194 171 - - - - - - - - - -
240 252 - - - - - 365 339 302 272 245 218 192 167
378 412 374 337 300 270 243 220 199 180 161 143 127 110
504 334 290 256 228 205 - - - - - - - -
300 336 526 495 463 431 397 361 326 295 266 239 213 188 163
504 426 380 336 299 269 243 219 198 178 160 143 126 109
400 420 756 717 678 673 595 549 500 452 408 366 327 288 250
504 707 661 614 566 515 465 420 380 343 308 274 242 210
1600 200 252 - - - 352 320 289 261 236 213 191 171 150 131
378 341 299 263 235 211 190 172 155 140 126 112 99 86
504 261 227 200 - - - - - - - - - -
240 252 - - - - - 427 390 353 318 286 255 225 195
378 481 437 393 351 315 284 257 232 209 188 168 148 128
504 390 339 299 267 239 - - - - - - - -
300 336 620 584 546 508 468 426 385 348 314 282 251 222 192
504 503 448 396 353 317 286 259 234 211 189 169 149 129
400 420 891 846 799 751 701 648 590 533 481 432 385 340 295
504 834 779 724 667 608 548 496 448 404 362 324 285 247
1800 240 252 - - - - - 488 447 404 364 327 292 257 223
378 550 501 450 401 360 325 294 266 240 215 192 169 147
300 504 432 387 342 305 274 - - - - - - - -
336 681 641 600 558 514 467 422 382 344 309 276 243 211
504 579 516 456 407 365 300 297 269 243 218 194 172 149
400 420 1027 974 921 866 808 747 680 614 554 498 444 391 340
504 960 898 835 769 700 632 571 516 466 418 373 329 286
500 525 1259 1197 1133 1067 999 925 846 765 690 619 552 487 423
735 1094 1006 917 826 741 669 604 546 493 442 394 348 302
Remark: The capacity is calculated by the belt speed V=1m/s

Selection instructions
corrugated sidewall belt conveyor drawing
Material to be processed: ______                                                          Handling capacity: ______ t/h
Bulk Density:______ t/m3
Please refer to the following picture and provide the relevant parameters:L1______ m, L2______ m, H______ m, α______ °
Material temperature: ______ ℃;                                                           Working environment temperature: ______  ℃
Material is corrosive or not:______  (Ps. Yes or No)                               Water content:______ %
Max. granule size of the feeding material: ______ mm
Max. Granule’s percentage in whole material:______ %
Percentage of Max. granule in material:______
Upstream equipment (using for feed the material): ______
Downstream equipment (using for discharge the material):______
Whether needing supporting equipment?
______ (Ps. Yes or No)
Working power supply: ______ ______ HZ                                          Quantity:______
The layout drawing : We will appreciate if you can provide us the layout drawing. The more detailed the better, because it can help our engineers to analyze, then we can give you the exactly quotation, supply the advanced technology support and more effective overseas installation and maintenance services.
