Vibrating Motor

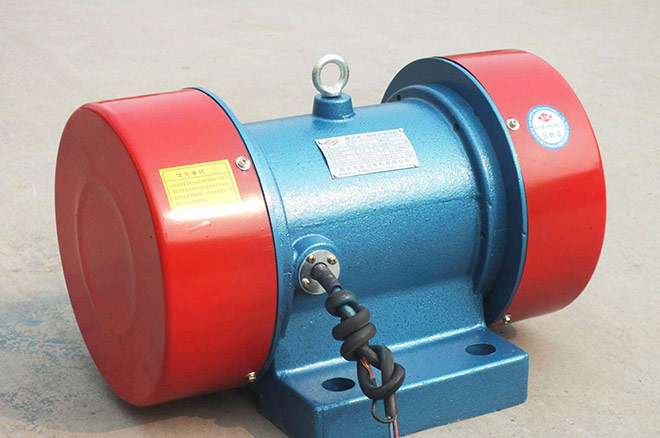

The vibrating motor is an excitation source that combines one of power supply and vibration source. The vibrating motor is provided with a set of eccentric blocks at both axial ends of the rotor so that the shaft and the eccentric block can rotate at a high speed to generate a centrifugal force. The vibrating motor has large vibration force, low energy consumption, low noise and long service life.
Products
Application
Contact Us
Middle of Xinchang North Line, Xinxiang City, Henan Province, China
Adjustment of Exciting Force

The output shaft of each end of the vibrating motor has a fixed eccentric block and an adjustable eccentric block. Adjusting the angle between the adjustable eccentric block and the fixed eccentric block can change the magnitude of the exciting force. The angle between the adjustable eccentric block and the fixed eccentric block is 0 degree when delivery, and the exciting force at this time is the rated exciting force of the vibration motor F.
Pay special attention, when adjusting the exciting force, adjust the adjustable eccentric block on the output shaft at both ends of the vibration motor to the same direction in the same direction.
Adjustment of exciting force steps :
1. Remove the protective cover.
2. Loosen the outside eccentric block and tighten the bolt.
3. Both sides of the eccentric block should be rotated in the same direction so that the alignment line on the shaft aligns with the excitation force value on the eccentric block to the required excitation force value, and check whether the two ends have the same angle.

Features
The vibrating force and power are matched properly, the vibration force is large, the weight of the body is light, the volume is small, the mechanical noise is low.
Since the vibrating motor is a strong resistance type vibration instead of resonance, it has a stable amplitude.
The vibration frequency range is large. The vibration frequency of the electromagnetic exciter is fixed, generally equal to the power step rate, and the vibration frequency of the vibrating motor can be adjusted in a wide range by adjusting the rotation speed, the vibration frequency and amplitude can be arbitrarily selected according to different thorough routes.
When the influence of the power supply fluctuation is small, the electromagnetic exciter causes a large change in the excitation force due to the voltage change, but in the vibrating motor, this change is very small.
Multi-machine combination, can achieve self-synchronization to complete different process requirements.
The direction of the exciting force can be changed according to the installation method of the vibrating motor.
The excitation force and amplitude can be adjusted steplessly only by adjusting the angle of the eccentric block.
The maintenance is simple. Since the spring is not used like the electromagnetic type, maintenance work such as clearance adjustment and weight adjustment can be eliminated, and only the bearings need to be repaired regularly.
Complete specifications to meet the needs of various types of vibration machinery work.
Vibration Motor parameters & installation dimensions
Type Speed
(rpm)
MCF
   (n)
Power
(kw)
Current AMP Weight
(kg)
  Dimension(mm)
FG A B C D E F Фg H J K M N Drawbolt
XV 0.7-2             2870 700 0.15 0.38 12 A 130 80 136 244 122 182 11 77 147 18 50 140 M10
XV 1.5-2 1500 0.15 0.38 14 A 130 80 140 244 115 165 11 77 160 20 50 140 M10
XV 2.5-2 2500 0.25 0.58 16 A 130 80 140 244 115 165 11 77 160 20 50 140 M10
XV 5-2 5000 0.40 1.01 27 A 150 120 173 390 192 200 18 100 210 24 54 204 M16
XV 8-2 8000 0.75 1.76 45 A 170 140 192 450 210 220 18 110 225 20 60 224 M16
XV 10-2 10000 1.10 2.30 48 A 170 140 192 450 210 220 18 110 225 20 60 224 M16
XV 16-2 16000 1.50 3.59 70 A 200 140 246 473 224 260 18 140 305 25 60 282 M16
XV 20-2 20000 1.80 4.24 96 B 230 83 258 568 275 280 22 157 330 25 75 325 M20
XV 30-2 30000 2.00 4.92 158 B 248 105 300 620 300 310 22 172 365 28 75 345 M20
XV 1.5-4 1460 1500 0.15 0.30 14 A 130 80 140 244 115 165 11 77 160 20 50 140 M10
XV 2.5-4 2500 0.15 0.32 16 A 130 80 140 244 115 165 11 77 160 20 50 140 M10
XV 5-4 5000 0.25 0.65 36 A 150 120 173 390 192 200 18 100 210 24 54 204 M16
XV 8-4 8000 0.40 1.14 48 A 170 140 192 450 210 220 18 110 225 20 60 224 M16
XV 10-4 10000 0.55 1.50 52 A 170 140 192 450 210 220 18 110 225 20 60 224 M16
XV 16-4 16000 0.75 1.91 70 A 200 140 246 473 224 260 18 140 305 25 60 282 M16
XV 20-4 20000 1.10 2.60 78 A 200 140 246 473 224 260 18 140 305 25 60 282 M16
XV 25-4 25000 1.50 3.72 112 B 230 83 258 568 275 280 22 157 330 25 75 335 M20
XV 32-4 32000 2.00 4.69 140 B 248 105 300 620 300 310 22 172 365 28 75 345 M20
XV 40-4 40000 2.20 5.06 145 B 248 105 300 620 300 310 22 172 365 28 75 345 M20
XV 50-4 50000 2.50 6.25 218 B 280 118 353 645 340 345 26 190 410 35 85 390 M24
XV 75-4 75000 4.00 10.14 275 B 320 120 373 815 370 405 32 200 435 33 102 410 M30
XV 120-4 120000 8.00 19.40 480 B 440 140 420 896 420 520 38 225 510 45 130 470 M36
XV 140-4 140000 10.00 24.16 620 C 460 118 480 940 490 560 38 260 520 35 120 560 M36
XV 160-4 160000 10.00 24.16 660 C 460 118 480 940 490 550 38 260 520 38 120 550 M36
XV 2.5-6 980 2500 0.25 0.70 38 A 150 120 197 375 192 200 18 100 265 25 54 204 M16
XV 5-6 5000 0.40 1.23 53 A 170 140 192 455 210 220 18 110 270 20 60 224 M16
XV 8-6 8000 0.55 1.68 60 A 170 140 250 455 224 220 18 140 300 20 60 282 M16
XV 10-6 10000 0.75 2.11 74 A 200 140 246 473 224 260 18 140 305 25 60 282 M16
XV 16-6 16000 1.10 3.03 82 A 200 140 246 473 230 245 18 140 315 22 60 282 M16
XV 20-6 20000 1.50 3.77 120 B 230 83 258 568 275 280 22 157 330 25 75 335 M20
XV 30-6 30000 2.20 5.47 160 B 248 105 300 620 300 310 22 172 365 28 75 345 M20
XV 40-6 40000 3.00 7.20 170 B 248 105 300 620 300 310 22 172 365 28 75 345 M20
XV 50-6 50000 3.70 9.28 228 B 280 118 353 645 340 340 26 190 410 35 85 390 M24
XV 75-6 75000 5.50 13.31 340 B 320 120 373 815 370 405 32 200 435 33 102 410 M30
XV 100-6 100000 7.50 17.93 473 B 380 140 420 865 420 460 32 225 470 32 120 470 M30
XV 120-6 120000 8.50 19.76 510 B 440 140 420 896 420 520 38 225 510 45 130 470 M36
XV 140-6 140000 9.50 21.70 660 C 460 118 480 940 490 560 38 260 520 35 120 560 M36
XV 160-6 160000 12.00 27.37 710 C 460 118 480 940 490 560 38 260 520 35 120 560 M36

Selection instructions

Rotation speed:______ rpm                                                                         Exciting force:______ KN
Insulation grade:______                                                                               Potection level:______
Explosion-proof is required or not:______  (Ps. Yes or No)
Working power supply: ______ V______ HZ
Quantity:______
What equipment does it work with,vibrating feeder,vibrating screen,hopper wall vibrator,etc.______

Inquiry
* Your name
* Email
Phone
Company
* Message
