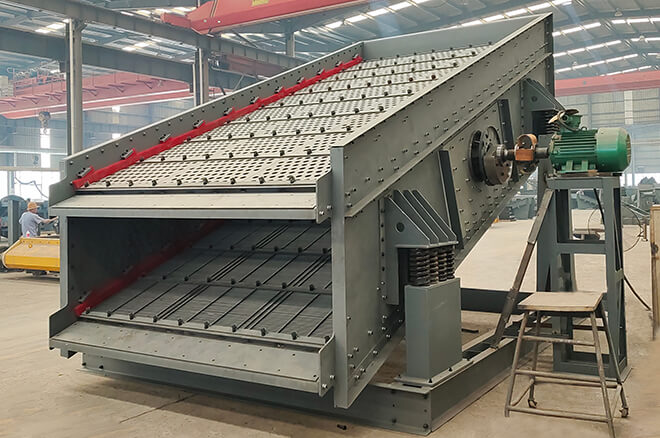

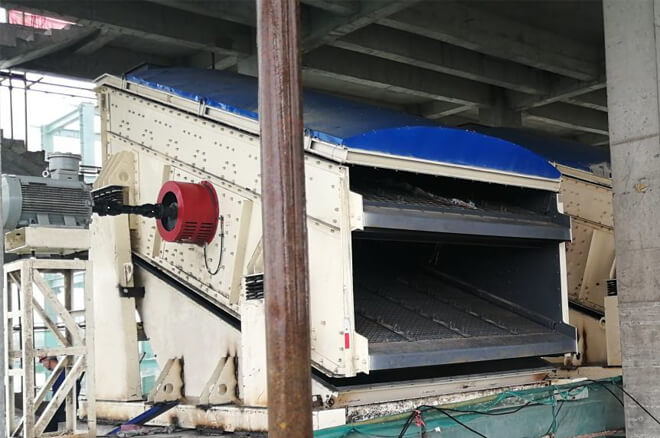

Inclined Screen

01 — Feeding Material enters the inclined screen and spreads across the screening surface.	02 — Vibrating Circular vibration moves the material bed along the inclined screen deck.	03 — Separating Fine particles pass through the screen openings while oversized particles remain on the deck.	04 — Discharging Undersized and oversized materials are discharged separately for efficient size classification.

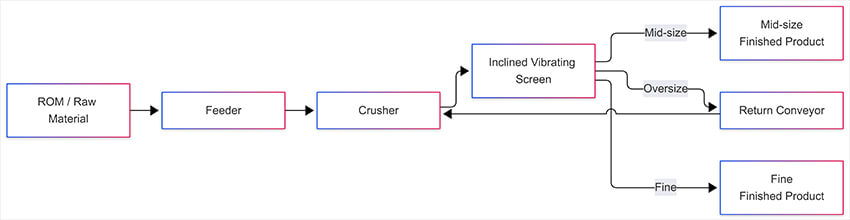

incilined screen ROM to Finished Product Flow

 01 — High-Throughput Screening

The inclined deck and circular motion promote continuous material flow for high-volume screening.

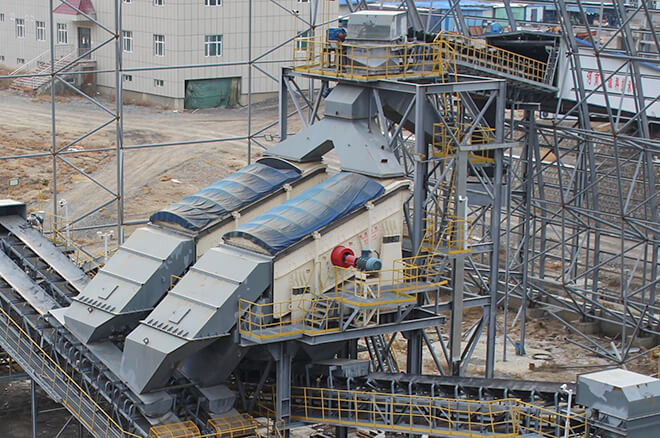

02 — Seamless Plant Integration
Designed for integration with feeders, crushers and conveyors in complete crushing and screening circuits.

03 — Robust Screen Structure
Reinforced screen components provide reliable structural strength under continuous vibration and heavy material loading.

04 — Extended Wear Life
Durable structural components and application-specific screening media support reliable operation in abrasive conditions.

05 — Application-Specific Configuration
Screen size, deck arrangement and screening media can be configured according to material and separation requirements.

06 — Continuous Material Flow
The inclined deck works with circular vibration to maintain steady material movement toward the discharge end.

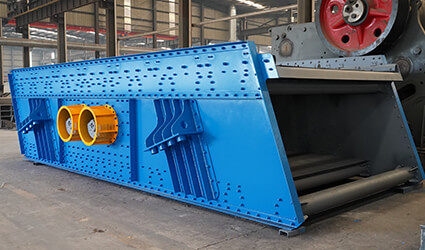

	Screen Box Heavy-duty screen body designed to withstand continuous vibration and material loading.

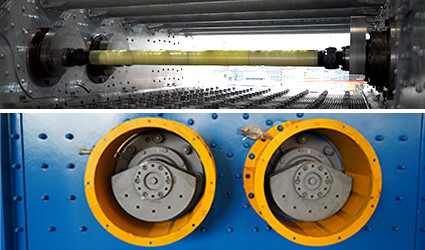

Vibrating Mechanism Robust excitation system generates controlled circular motion for efficient screening.

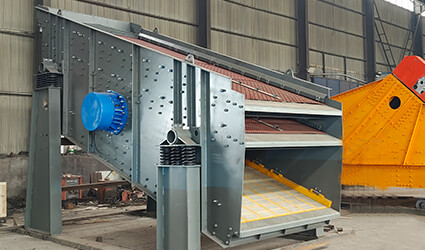

	Screen Deck Multi-deck configuration allows simultaneous separation into different size fractions.

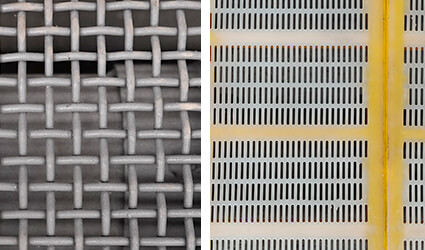

Screening Media Selectable mesh, rubber or polyurethane media according to material and cut size.

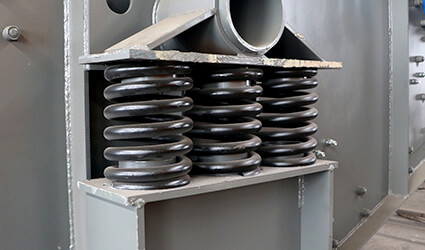

	Spring Suspension Absorbs dynamic loads and supports stable operation.

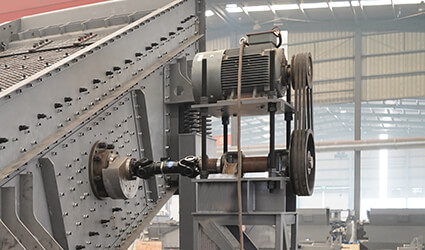

Drive System Electric motor and drive arrangement provide reliable continuous operation.

Mining & Minerals
Screens run-of-mine materials for efficient mineral sizing and classification.

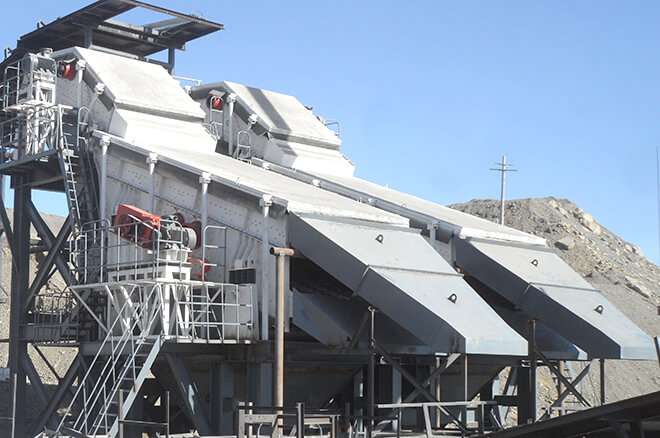

Coal Processing
Handles large volumes of coal for sizing, scalping and downstream processing.

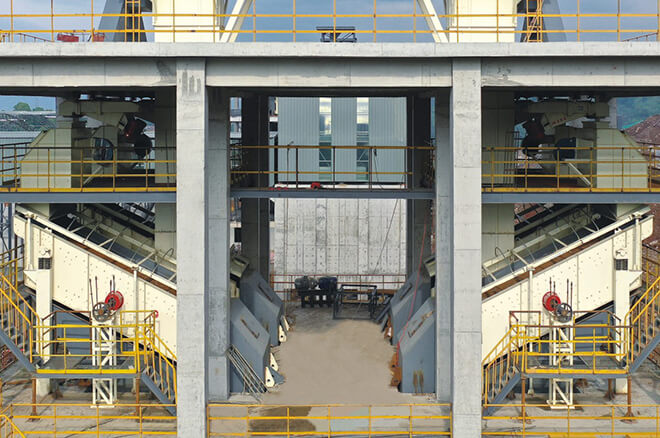

Quarrying
Separates crushed stone into consistent sizes for further processing or sale.

Construction Materials
Screens bulk materials to achieve the required product size and quality.

Recycling
Separates recycled materials after crushing to improve recovery and product quality.


Why Choose EXCT Inclined Screens?

Engineering-Based Design Screen configuration is developed according to material characteristics, capacity and process requirements.	Heavy-Duty Manufacturing Robust structures and wear-resistant components are designed for demanding bulk material applications.	Complete Crushing & Screening Integration Feeders, crushers, screens and conveyors can be engineered as an integrated processing system.
Customized Configuration Screen dimensions, decks, screening media, drive configuration and supporting structures can be customized.	EPC Capability EXCT provides equipment supply as well as complete engineering, procurement and construction solutions.	Lifecycle Support Spare parts, technical support and after-sales service help maintain long-term plant availability.

Inclined Vibrating Screen FAQ

1.Material to be screened: ______(We will appreciate if you can provide us the on-site photo for the material)
2.Handling capacity:______t/h
3.Bulk Density: ______t/m3
4.Max. granule size of the feeding material: ______mm
5.Layer number: ______
6.Mesh size of each layer: ______mm
7.Particle distribution percentage:______
please check the following example to help you undertand it:
If the layer number is two, the mesh size of each layer is 8 mm and 3 mm, then you will get 3 kinds of products: X,Y and Z. X≥8 mm; 3mm≤ Y < 8 mm; Z<3mm.
We want to confirm the following information:
a.The percentage of X in the whole material:______%;
b.The percentage of Y in the whole material:______%;
c.The percentage of Z in the whole material:______%;
8.What equipment is used to feed the material into the circular vibrating screen:______
9. What equipment is used to discharge the material from the circular vibrating screen: ______
10.Working power supply: ______V ______HZ
11.Does the circular vibrating screen work alone or with other equipment to form a system? If forming a system, do you have preliminary design or hand-drawn sketch? If have，Please send it to our engineer for reference.
12.Quantity required :______
