Wobbler Feeder

Wobbler Feeder is a screening equipment used at the front end of primary crushers, designed to pre-screen the materials in order to reduce the wear of the crusher. Its cross-shaped screen plate structure is particularly suitable for separating fine particles attached to large pieces of materials, and it has excellent screening performance. This equipment can be widely applied in various industrial fields such as coal, mining, metallurgy, building materials, waste recycling, power, and chemical industries.
Products
Application
Contact Us
Tel:
Mobile:
Whatsapp:
Wechat:
E-mail:
Skype:
Https:
Address:  Middle of Xinchang North Line, Xinxiang City, Henan Province, China
How IT WORKS

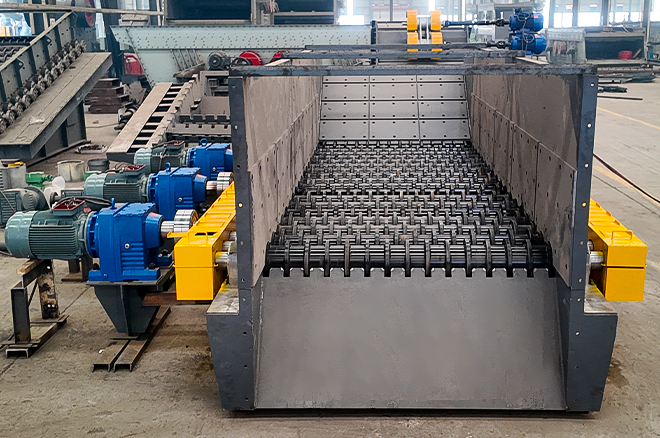

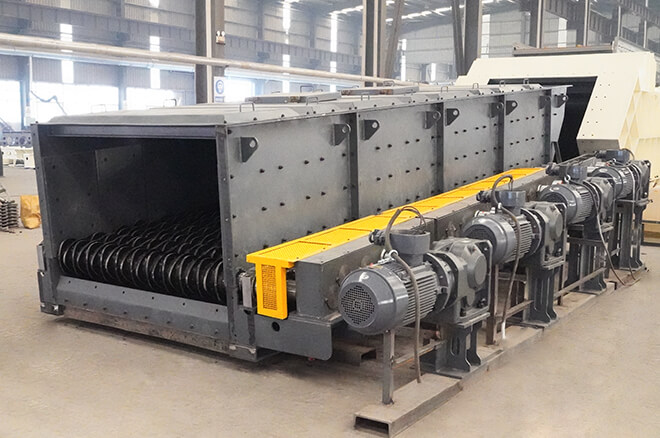

The wobbler feeder is composed of Screen Shaft Assembly, Screen Body, Driving Device, Protective Housing, Lining Plate, and Self-cleaning Device. The screen surface is made up of multiple parallel metal rollers. The motor drives the rollers to rotate through chains, gears or a reducer. Each roller rotates in the same direction (usually from the feed end to the discharge end), and the material moves forward on the surface of the rollers. Materials with acceptable particle size (less than the gap between the rollers): fall through the gap between the rollers and enter the lower collection device. Materials with excessive particle size (greater than the gap between the rollers): are driven forward by the rollers and eventually discharged from the discharge end. At the bottom of the screen plate, a comb-shaped plate is installed, which can achieve the self-cleaning function.
features:
 1.High Productivity:
The Wobbler Feeder integrates both feeding and screening functions, doubling the processing efficiency in a single machine. Its reinforced swing mechanism, designed with impact resistance, ensures stable output under full-load operation, significantly enhancing system throughput.

2. Long maintenance cycle:
This series of Wobbler Feeders integrates a self-cleaning system, effectively preventing material blockage and screen blinding. The equipment is standardly equipped with an automatic centralized lubrication device, combined with the point-movement reverse function, which can quickly resolve sudden material jamming situations, ensuring continuous and stable operation.

3. Wide application range:
It can be widely applied in various industries such as coal, building materials, mining, metallurgy, power plants, chemical engineering, and garbage recycling, especially suitable for difficult-to-screen bulk materials, such as damp materials containing mudstone or clay.

4. Modular Design:

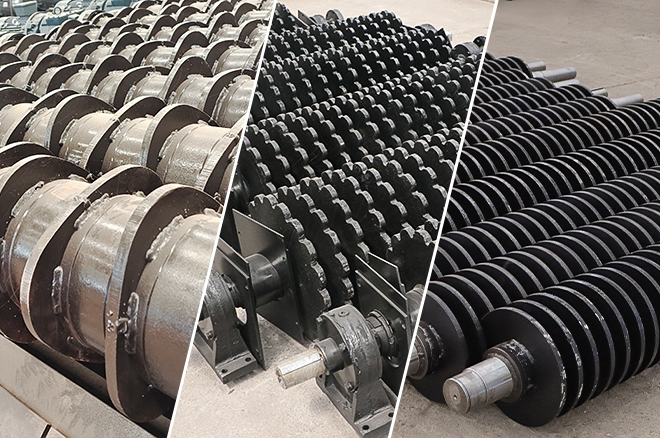

The entire machine adopts a modular design, which makes installation, disassembly, maintenance and repair convenient and fast. According to different customers' demands, the sieve plate can be customized into various types such as circular, triangular and plum blossom. This modular design also allows for the setting of stepped structures between each independent module.

5. Self-cleaning Function:
The screen shafts, through a unique separation surface movement mechanism and self-cleaning design, significantly reduce the risk of material blockage. Each screen shaft is equipped with an efficient scraper cleaning system, providing a double guarantee to ensure the continuous cleanliness of the screening surface.

6. High Safety:
The wobbler feeder adopts a closed design, operates without vibration, has minimal dust emission, and generates low noise. It is equipped with a centralized automatic lubrication system that enables continuous operation for long periods, significantly reducing the frequency of manual maintenance.
Application:
Wobbler Feeder is widely used in industries such as coal, mining, cement, power, metallurgy, and waste recycling.
