Mineral sizer is a type of graded crushing equipment that can be used in coal, mining, electricity and other industries. The working principle of material crushing is realized by cutting and streching, which can embed the material to a large extent and improve the biting ability toeffectively avoid more powder production. Our mineral sizers have the advantages of large processing capacity, light weight, small size, less infrastructure and low input cost.

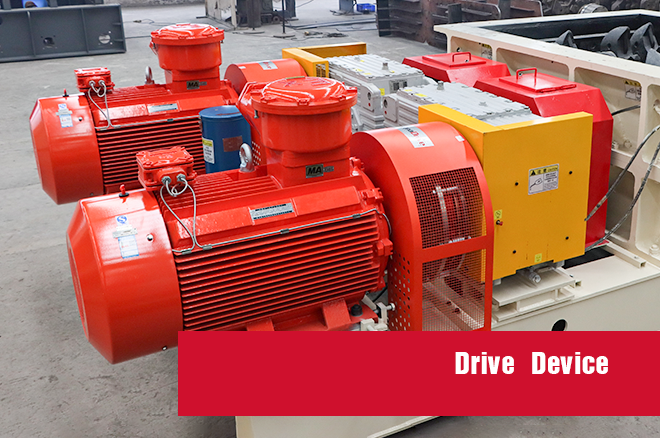

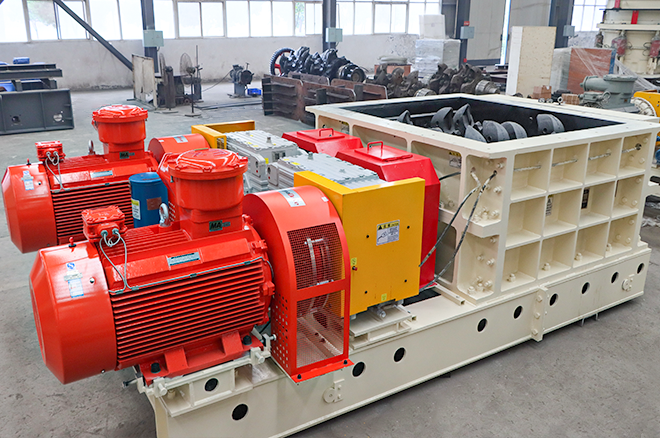

Mineral sizer is mainly composed of base support, box body, crushing roller, coupling, reducer, hydraulic coupling, explosion-proof motor, lubrication device, running gear and so on.
Address: Middle of Xinchang North Line, Xinxiang City, Henan Province, China
HOW IT WORKS
Share:
MINERAL SIZER FEATURES

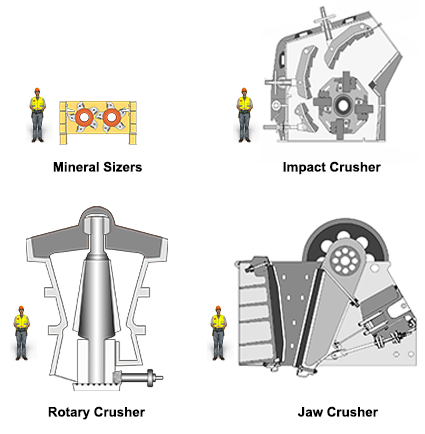

Compact Dimensions Low Profile Our mineral sizers guarantee the smallest size and the
lightest weight in comparison to other types of crushers
with the same processing capacity.

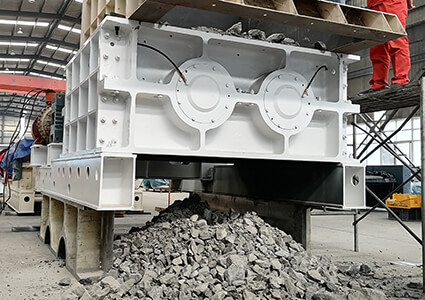

Minimal Fines Generation The particle size of the broken product is uniform,
the situation of excessive particle size and excessive
crushing is lower than that of conventional crusher are
lower than that of the conventional crusher, and the
mineral is broken by low-speed shear and tensile, so
the fines produced is also less.

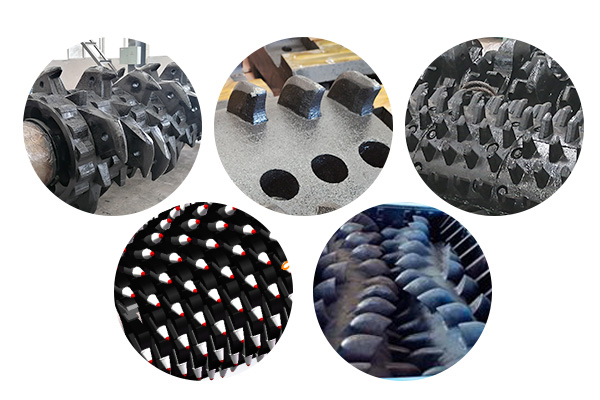

Appropriate For Crushing Hard, Soft,
Vicious And Other Materials According to the characteristics of different materials,
our engineers have developed tooth profiles suitable
for handlinghard, soft and viscous materials.
Automated Operation We are a professional mineral sizers manufacturer,
we not only provide high quality equipment, but also
provide a complete smart mine system, combined
with monitoring, infrared sensors, Internet of things
and other advanced technology to protect the safety
of our customers.

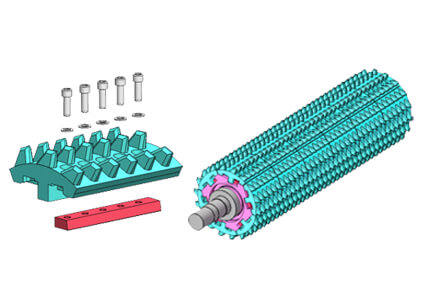

Simple And Safe Maintenance The modular design adopted, according to
the customer needs and the site environment
restrictions, the equipment can be modular
design and production, convenient equipment
installation and daily maintenance.
Mineral sizer Brochure
For more details on mineral sizers, click here to download borchure(pdf)
SPECIFICATIONS

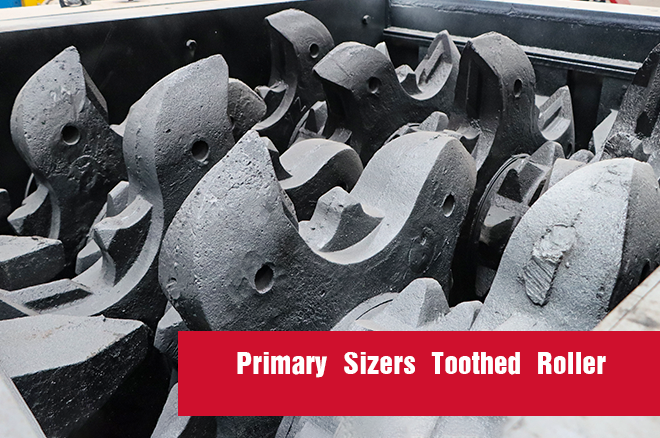

Primary Crusher Technical Specifications
Model
2PLF800
2PLF1000
2PLF1200
2PLF1500
Teeth Roller Dia (mm）
800
1000
1200
1400
Roll length (mm）
1500-2500
1500-3000
1500-3000
2000-3500
Max feed size (mm）
800
1000
1200
1500
Output size (mm）
≤300
≤300
≤300
≤300
Capacity (t/h)
≤2000
≤3500
≤6000
≤10000

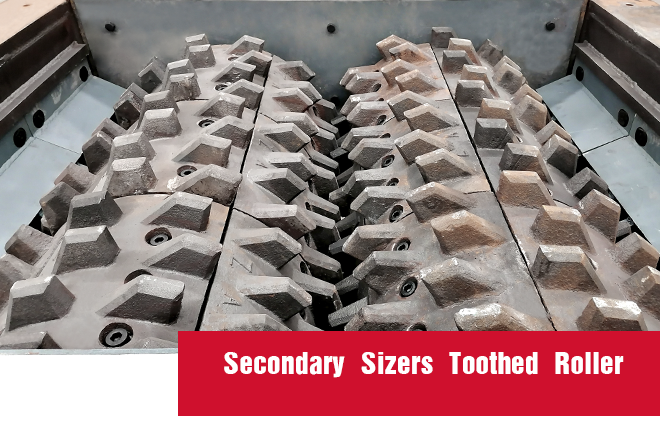

Secondary Crusher Technical Specifications
Model
2PLS600
2PLS800
2PLS1000
2PLS1200
Teeth Roller Dia ( mm )
600
800
1000
1200
Roll length（mm）
1000-2500
1500-3000
2000-3500
2000-4000
Max feed size （mm）
200
300
350
400
Output size （mm）
50-80
50-100
50-120
50-140
Capacity ( t/h )
250-800
500-2000
600-3000
800-4000
Selection instructions
1.Which material to be crushed:______
2.Handling capacity:______t/h.
3.Bulk material density: ______t/m3
4.The material compressive strength:______Mpa
5.The material HGI (hardgrove grindability index) range:
6. Material particle distribution percentage？
7.Max. grain size of the feeding material: ______mm
8. What is the grain size of the finished product after crushing?
9.What equipment is used to feed the material into the sizer?
10.What equipment is used to discharge the material from the sizer?
11.As we know,the sizer should form a system with other equipment, do you have preliminary design or hand-drawn sketch? If have, please send it to our engineer for reference.
