| Belt Width |
Up to 2.4m |
| Belt Length |
3,000m + |
| Capacity |
> 8,000 m³/h |
| Belt speed |
Up to 6.0m/s |
| Max Incline |
Maximum 25º |

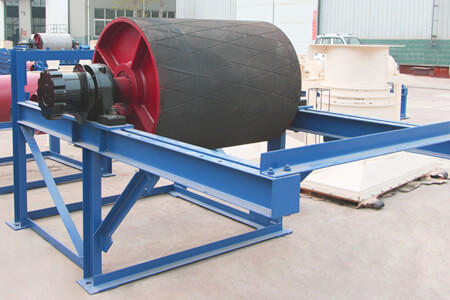

| Drive Type |

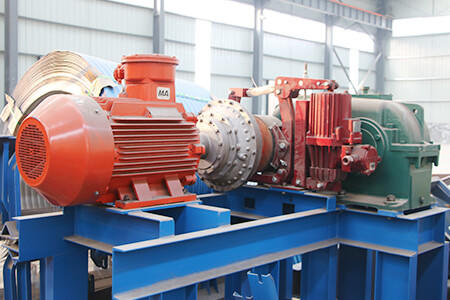

Motorized pulley | Geared motor unit | Motor+fluid coupling+gear box |
| Belt Options |
Antistatic| Fire resistant | Oil resistant | Hard wearing | corrosion resistant |
| Tension Unit |
Below 100m – screw type tail tension unit | Above 100m - gravity tension unit or car type tension unit |
| Protection Switches |

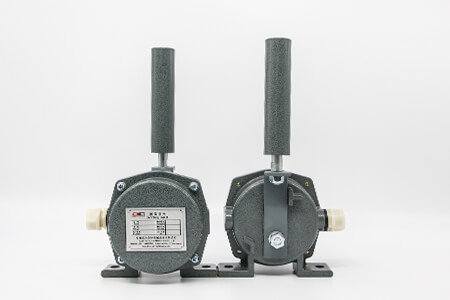

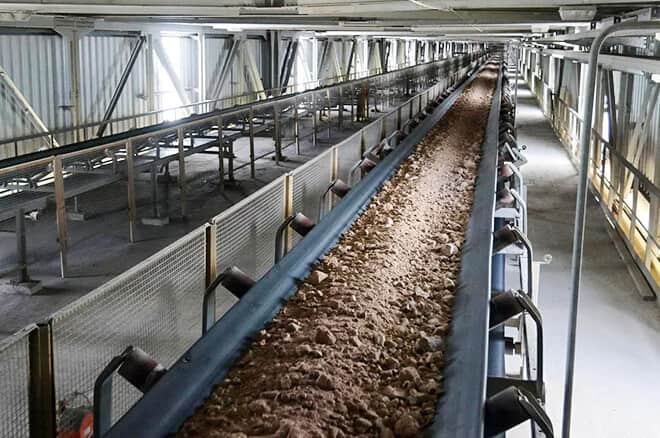

Speed switch | Belt Sway Switches | Pull-cord switch | Blockage sensor |
| Construction Materials |
Conveyor case and internals - stainless or coated mild steel | Conveyor support structure - galvanised mild steel |
| Conveyed Materials |
Wet or dry bulky materials in the form of crumbs, grains, pellets, shreds, dust, powder, flake, or crushed products of bio-matter, sludge and aggregate. |

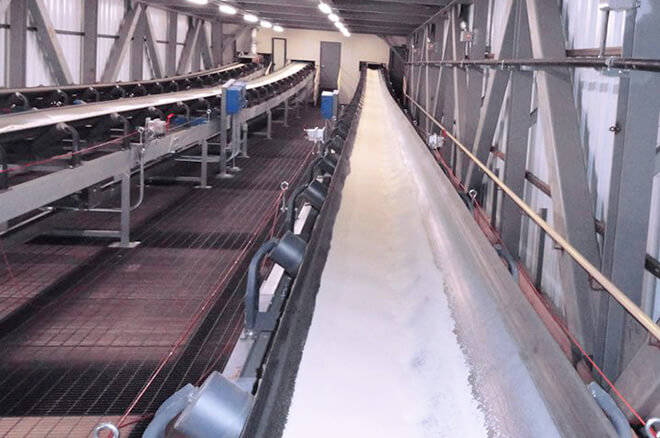

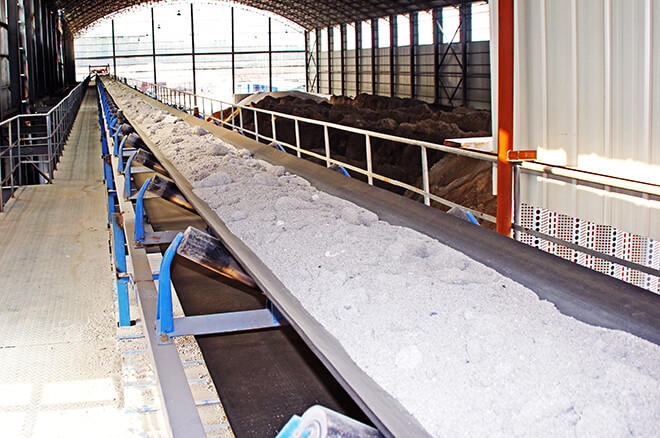

Applied industries and fields
FEATURES AND BENEFITS
| Optimum Performance |
|
Increased Safety |

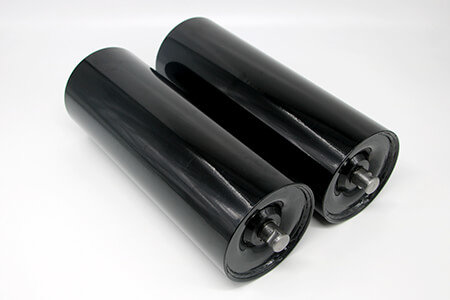

| Optional self-aligning idlers can effectively prevent belt deviation. |

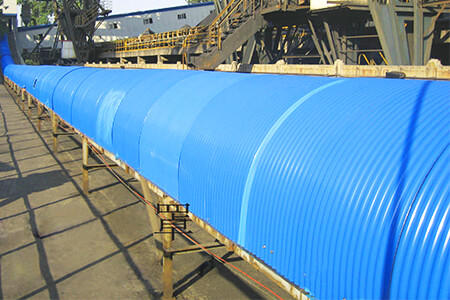

Skirts fitted at the feeding point, fully sealed hood at the head section, improve the working environment. |
| Stable operation, no relative movement between the material and the conveyor belt, to prevent materials spillage and damage. |
All kinds of protection switches give early warning of possible accidents. |
| |
|
| Lower Maintenance Cost |
Guaranteed Quality |
Automatic control, reduce maintenance personnel, save labor costs.
Interchangeable standardized spare parts to reduce purchase cost. |
Over 30 years of professional manufacturing experience and more than thousands of successful projects for end users at home and abroad. |
| Rapid replacement of spare parts, significantly reducing costly downtime. |
Scientific design, advanced processing equipment, experienced technicians and skilled workers, complete quality inspection system to ensure the quality of the products. |
Success project in various industries
 |
.jpg)
|
|

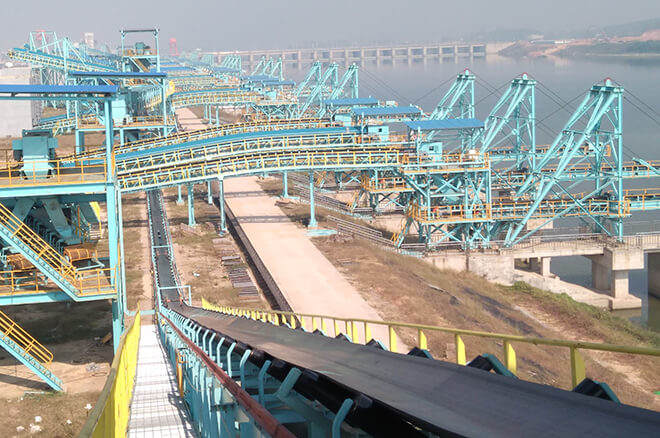

Project name: 200,000-ton ore berth project of Dandong Port
Material name: Iron ore Handling capacity: 5,000t/h
Belt width: 1,800mm Belt length: 4,960m
Belt speed: 4.0m/s Installation angle:5°
End user name: Dandong Port Group Co., Ltd
|
Project name: Long distance belt conveyor is used for lignite transportation in opencast coal mine
Material name: Lignite Handling capacity: 2,200t/h
Belt width: 1,600mm Belt length: 1,562m
Belt speed: 2.5m/s Installation angle: -6°~+4°
End user name: Shanxi Datong Mining Group Co.,Ltd
|
 |
|
|
Project name: Heat-resistant belt conveyors are used to transport clinker in cement plants
Material name: Cement clinker Handling capacity: 800t/h
Belt width: 1,000mm Belt length: 320m
Belt speed: 1.6m/s Installation angle: 14°
End user name: Henan Lantian Cement Co.,Ltd
|
Project name: Overland belt conveyor is used to transport coal for coal-fired power plant
Material name: Fuel coal Handling capacity: 1,200t/h
Belt width: 1,400mm Belt length: 3,620m
Belt speed: 2.0m/s Installation angle: 0°
End user name: Yuneng Power Generation Co., Ltd
|
| Belt Conveyor Technical Specifications |
| Belt width(mm) |
Belt speed （m/s) |
| 0.8 |
1.0 |
1.3 |
1.6 |
2.0 |
2.5 |
3.2 |
4.0 |
5.0 |
6.5 |
| Capacity （m³/h） |
| 500 |
69 |
87 |
108 |
139 |
174 |
217 |
|
|
|
|
| 650 |
127 |
159 |
198 |
254 |
318 |
397 |
|
|
|
|
| 800 |
198 |
248 |
310 |
397 |
496 |
620 |
781 |
|
|
|
| 1000 |
324 |
405 |
507 |
649 |
811 |
1014 |
1278 |
1622 |
|
|
| 1200 |
|
593 |
742 |
951 |
1188 |
1486 |
1872 |
2377 |
2971 |
|
| 1400 |
|
825 |
1032 |
1321 |
1652 |
2065 |
2602 |
3304 |
4130 |
|
| 1600 |
|
|
|
|
2186 |
2733 |
3444 |
4373 |
5466 |
|
| 1800 |
|
|
|
|
2795 |
3494 |
4403 |
5591 |
6989 |
9083 |
| 2000 |
|
|
|
|
3470 |
4338 |
5466 |
6941 |
8676 |
11277 |
| 2200 |
|
|
|
|
|
|
6843 |
8690 |
10863 |
14120 |
| 2400 |
|
|
|
|
|
|
8289 |
10526 |
13158 |
17104 |
| Remark：Capacity is caculated by material horizontal conveyoring ,20°Operating stacking Angle,35°roller groove Angle . |
1.Material to be conveyed:______
2.Handling capacity: ______ t/h
3.Bulk Density:______ t/m3
4.Center distance between the head and tail pulley:______ m
5.Max. granule size of the feeding material:______ mm
6.Max. Granule's percentage in whole material:______ %
7.What equipment is used to feed the material into the belt conveyor :______
8.What equipment is used to discharge the material from the belt conveyor :______
9.Working power supply: ______ V ______ HZ
10.Does the belt conveyor work alone or with other equipment to form a system? If forming a system, do you have preliminary design or hand-drawn sketch? If have,please send it to our engineer for reference.
