Scraper Conveyor

Scraper conveyor solutions are ideal for transporting powdery, dusty or granular materials. Such materials that are often handled in power plants, smelters, pulp & paper and chemical industries, i.e., sand, fly ash, lime, flue dust, amongst other materials. It can also be designed around your needs for transportation, whatever industry you are working in. Special application is a wet scraper conveyor for handling bottom ash and slag.
Products
Application
Related cases
En-masse Scraper Conveyor
En-masse Scraper Conveyor for Zhujiang Cement Dust Collector Project
Contact Us
Tel:
Mobile:
Whatsapp:
Wechat:
E-mail:
Skype:
Https:
Address:  Middle of Xinchang North Line, Xinxiang City, Henan Province, China
Description

A scraper conveyor is a type of flight conveyor. It consists of a trough in which a continuous driven chain with flights is running. The flights are scraping the material over the bottom of the casing. The material is moving forward to the discharge point
The design is ideal for slower transportation speeds over short distances, on moderate inclines, or even under water.
We use forked chains, round link chains as well as box scraper chains as a chain type. According to the product and load, we use single as well as double strand versions.

basic parameter
Slot width: 250-800mm
Conveying capacity: 25-400 t/h
Bulk density ρ=1.8t/m³
Material Temperature: ≤120℃
Conveying Distance: ≤70meters
Operating speed: 0.16/0.20/0.25/0.32m/s
Product Details
Conveyor is composed of housing, driving device, sprocket, chain, tension device, etc.
scraper conveyor Product Details
1 Driving device
The transmission structure is compact and the flexible transmission is realized. It can not only stabilize the operation, but also protect the motor, reducer and traction parts. Allows the material to remain stable during shutdown.

2 Scraper & Chain
Machined yokes provide a tight,controlled fit between links. Each link is individually pinned for ease of replacement.Chain link bores are machined to provide a full pin/bore bearing area for maximum strength.

3 Casing
The head, tail and middle casing of the machine are effectively sealed, and the materials and dust are not raised, which will not cause environmental pollution.

4 Tensioning device
Usually, the screw type or heavy hammer type tensioning device is used. The tensioning device is connected with the tensioning wheel to obtain the necessary initial tension of the traction member to ensure operation of drag conveyor.

THE TYPE OF Flight
According to the different conveying materials, choose different sizes and shapes of the flight.
the type of scraper conveyor
T Flight: For horizontal or slightly inclined conveyors    BT Flight: For conveyors having any degree of inclination.
U Flight: For steeply inclined conveyors.                       00 Flight: For vertical conveyors.
Closed U Flight: For vertical conveyors.                        00 Flight with filler plates: Conveying viscous materials

THE SCRAPER CONVEYOR OF FEATURES
1. It can transport powder, granules and small block materials horizontally or at a small inclination angle, and the horizontal conveying distance is long, up to 70 meters.

2. The structure is solid and can withstand the impact, impact, smashing, pressing and other external forces of coal, gangue or other materials.

3. It can be used for horizontal conveying or inclined conveying. When transporting upward along the inclination, the inclination angle of the material not exceed 25°, and when transporting downward, the inclination angle shall not exceed 20°.

4. It can be multi-point feeding and multi-point discharging without any additional feeding or discharging device.

5. The casing has good sealing performance, which can prevent the dust phenomenon during the conveying process of materials and reduce the pollution to the environment.

6. When there is no casing at the tail, and the scraper is put into the material pile, the material can be reclaimed and conveyed by itself.

Scraper conveyor applications in different industries
Scraper conveyor is not only the transportation of coal and materials, but also the running track of the shearer, so it has become an indispensable main equipment in the modern material conveyor. It can be used for horizontal transportation and also can be used for inclined transportation.
Scraper conveyor apply to Construction material, Steel / Metal industry, Chemical industry, Food industry, Sewage treatment and so on.

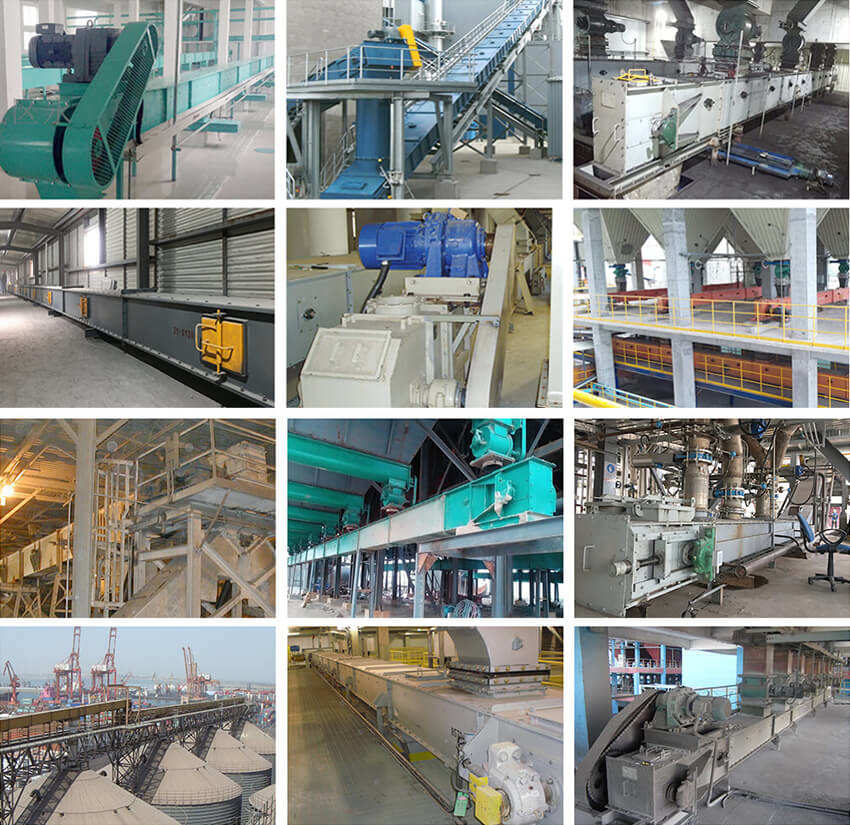

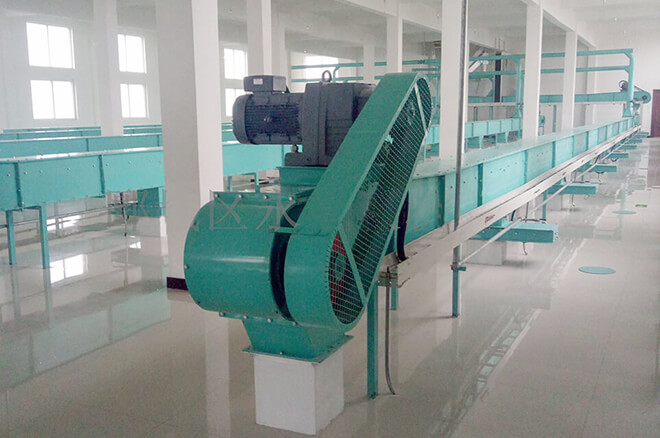

scraper conveyor on site

Specifications
Scraper Conveyor Technical Specifications
Machine Item MS25 MS32 MS40 MS50 MS63 MS80
Chute Width(mm) 250 315 400 500 630 800
Capacity(t/h) 25/31.5 40/50 80/100 160/200 200/250 315/400
Max Conveying Distance(m) 50 50 50 50 50 50
Scrapper Chain Model 3002T 3002T 3003T 3003T 3003T 3003T
Allowable load(kn) 33.4 45 100 100 275 2100
Weight(kg/m) 13.87 15.36 25.34 25.34 47.6 52.32
Operating speed(m/s) 0.16/0.20/0.25/0.32
Selection instructions

1.Material to be processed: ______
2.Handling capacity: ______ t/h
3.Bulk Density: ______t/m3
4.Center distance between the inlet and outlet:______ m
5.Max. granule size of the feeding material:______mm
6.Is the equipment mounted horizontally or inclined? If it is inclined,what is the inclined degree______°
7.What equipment is used to feed the material into the scraper conveyor:______
8.What equipment is used to discharge the material from the scraper conveyor:______
9.Working power supply: ______ V ______ HZ
10.Does the scraper conveyor work alone or with other equipment to form a system? If forming a system, do you have preliminary design or hand-drawn sketch? If have,please send it to our engineer for reference.
