Introduction

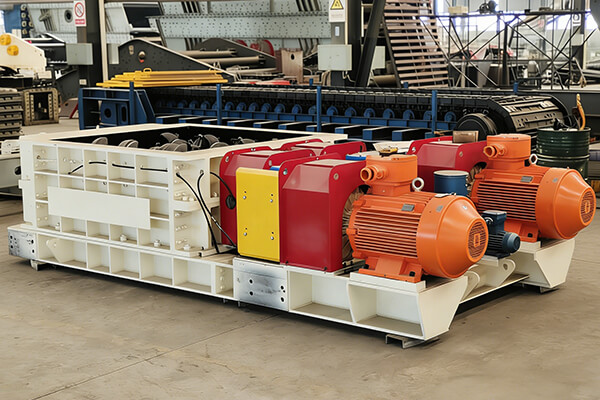

Mineral Sizer can operate efficiently in narrow underground mining tunnels and mobile crushing stations with extremely high spatial layout requirements. The equipment has a compact structure but can undertake key crushing and screening tasks for various ores, coal and other materials. Next, we will delve into why Mineral Sizer has such a unique compact design and how this design plays a crucial role in mining production.

The Technical Foundation of Compact Design

Crushing principle

Traditional extrusion crushing, such as the common jaw crushers and cone crushers, mainly relies on the extrusion force to subject the material to strong pressure in the crushing chamber, thereby causing crushing. During this process, the material needs to go through a complex movement trajectory in the crushing chamber. Part of the space is used for buffering and ineffective movement of the material, resulting in an increase in the ineffective volume of the crushing chamber.

The roller teeth of Mineral Sizer directly act on the material, achieving crushing through shearing and stretching. The roller teeth precisely target the weak parts of the material, causing it to quickly break along its own texture and vulnerable areas. Take coal processing as an example. Traditional extrusion crushing may require a large crushing cavity and a long time to complete the crushing of coal. The roller teeth of Mineral Sizer can directly cut into the coal and quickly cut it into the appropriate particle size, without too much ineffective space to accommodate the movement of the material. This unique crushing principle not only enhances the crushing efficiency but also enables the equipment to significantly reduce the ineffective volume of the crushing cavity while achieving the same crushing effect.

Material flow optimization

The compact design of Mineral Sizer enables shorter and more direct material paths. Traditional crushing equipment, due to its unreasonable structural layout, requires materials to go through tortuous movement paths within the equipment. Multiple turns and buffering not only increase the residence time of the materials but also demand additional space to accommodate these complex movements. Through meticulous design, Mineral Sizer enables materials to reach the crushing area in a nearly straight line as soon as they enter from the feed port.

On the one hand, it reduces the floor space occupied by the equipment, enabling Mineral Sizer to be easily installed and operated in space-constrained environments. On the other hand, it has shortened the processing time of materials and improved the overall production efficiency of the equipment.

The advantages of compact design

Minimal Footprint

Traditional large-scale crushing equipment, due to its huge size, is difficult to install and operate in narrow tunnels and limited mining areas. With its compact size, Mineral Sizer can easily adapt to the confined Spaces in underground mines. The traditional multi-stage crushing system, due to the large number of devices and the need to reserve considerable space between each device for material transfer and buffering, results in a relatively large floor area required per unit of production capacity. Through innovative design, Mineral Sizer integrates multiple functions into a compact device, reducing redundant space between devices and significantly lowering the floor space required per unit of production capacity.

Simplified Installation

Traditional large-scale crushing equipment is often extremely heavy and has very high requirements for the load-bearing capacity of the foundation. When building the foundation, large-scale ground treatment is required, and thick concrete foundations need to be poured. This not only increases the cost of civil construction but also consumes a great deal of time and manpower. Due to its light weight, Mineral Sizer has relatively low requirements for the load-bearing capacity of the foundation and can be hoisted using small cranes or forklifts. The installation process is more convenient and faster, significantly reducing the installation time.

Maintenance & Reliability

Maintenance space

Despite its compact overall structure, Mineral Sizer achieves excellent component accessibility through ingenious layout. The roller teeth, as the main wearing parts, come into direct contact with the material during the operation of the equipment and are subjected to tremendous impact and friction forces, thus requiring regular inspection and replacement. During actual maintenance, the staff can easily approach the roller teeth without having to remove a large number of peripheral components. This is attributed to its reasonable structural layout. The roller teeth are installed in positions that are easy to operate, and the surrounding protective devices adopt a quick-disassembly design. With simple tools and steps, they can be quickly opened to expose the roller teeth. Through maintenance platforms or channels, staff can carry out maintenance work safely and comfortably, which greatly improves maintenance efficiency, saves maintenance time, and reduces production losses caused by equipment downtime.

Component simplification

Compared with traditional multi-stage crushing systems, the integrated design of Mineral Sizer has a significant advantage in reducing maintenance burdens. A multi-stage crushing system is usually composed of multiple different types of crushers, feeders, screeners and a large number of conveying equipment. These devices are connected through complex chutes, belt conveyors, etc., forming a huge and complex system. Each device has its own vulnerable parts and maintenance points, and there are numerous transfer points between devices. These transfer points are prone to problems such as material blockage and spillage, increasing the difficulty and frequency of maintenance.

Conclusion

From a technical perspective, the unique shearing/stretching crushing principle, modular design, and optimized material flow enable it to achieve efficient crushing operations within a limited space. In terms of operation, the compact design of Mineral Sizer has led to a significant reduction in floor space and simplification of infrastructure and installation, saving mining enterprises a considerable amount of costs and time. In terms of maintenance and reliability, despite its compact design, Mineral Sizer ensures the stable operation and convenient maintenance of the equipment by optimizing maintenance space, reducing the number of components and lowering the reliance on the conveying system. This not only reduces the failure rate of equipment, shortens downtime, but also lowers maintenance costs, providing a strong guarantee for the continuous production of mining enterprises.
