What is the double layer stainless steel vibratory separator

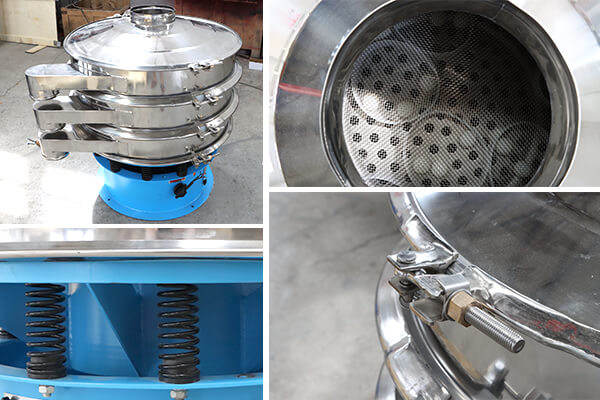

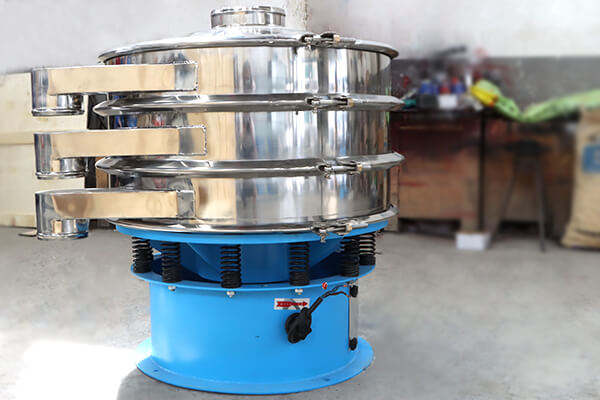

Vibratory separator is a vertical vibration motor as the excitation source, from the center of the vibration force to the upward transmission of seismic power, forcing the material to do rotary jumping movement, so as to achieve the purpose of sieving powder. Double layer stainless steel vibratory separator is on the basis of single layer, increase the vibration power of vibration motor, add a layer of network frame and sieve grid, constitute the vibratory separator machinery that can screen two kinds of materials. Double-layer vibratory separator is installed with two layers of screen screen. The whole machine is divided into three discharge ports and one feeding port. The base part can be made of stainless steel or carbon steel as required, and it is also convenient for users to move and install universal moving wheel. The whole machine is compact in design, low in noise and small in floor space. It is a new type of high efficiency and energy saving equipment for sieving liquid, powder and particle.
vibratory separator manufacturer
The vibratory separator is operated by an electric motor to excite the vibrator products, which are connected by a spring to make the vibration part of the vibrator into a complex rotary vibration. The vibratory separator is a complex three-dimensional curve in space. The horizontal projection of the curve is circular, and the projection on the two vertical surfaces is elliptic. Adjusting the phase Angle of the vibrator by rotating the hammer can change the motion track of the material on the screen. When the upper and lower weight blocks overlap and the phase Angle is 0 degrees, the material diverges from the center to the outside; When the phase Angle of the hammer block is 90 degrees, the material will converge to the center.
vibratory separator supplier
Main application categories of double-layer vibratory separator:
1. Metal powder: aluminum, lead, zinc, copper, iron, nickel, alloy, magnetic materials and other metals for powder;
2. Chemical material: resin, plastic, rubber chemicals, dyestuff, filling material and others;
3. Food category: flour, cocoa, coffee, condiments, additives and so on;
4. GMPS: Chinese and western API, Western medicine, Chinese patent medicine;
5. Grain: grains, corn, beans, sesame and other crops
6. Abradant material: glass beads, aluminium oxide, corundum, carbon chloride, carborundum, quartz sand and other;
7. Feed processing powder, particles, additives and others;
8. Screening of raw materials and other finished products for fertilizers;
9. All kinds of raw ore powder in minerals and their finished products after processing screening;
10. Fibrous material: wood chips, wood powder, charcoal, activated carbon, carbon black and other fiber materials;
11. The resources recycling of electric solder, refractory, fluorescent powder and other materials.
