Background

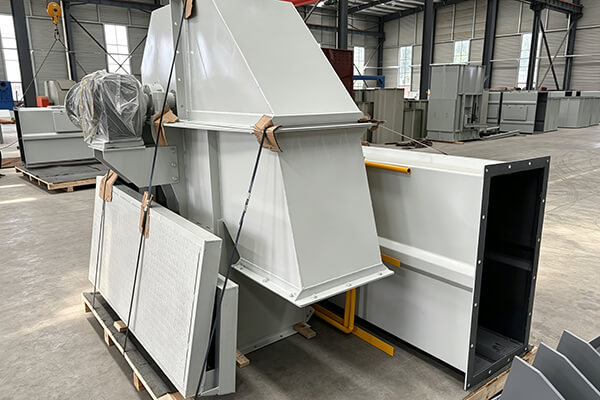

EXCT has recently completed the manufacturing and export packaging of the bucket elevator ordered by the Jordanian client. After the production, assembly and inspection are completed, the equipment is being packaged and is ready to be dispatched to the client's project site.

Customer Requirement and Equipment Selection

The equipment configuration was determined according to the customer's application conditions, conveying requirements and project layout.

The main technical parameters of the Bucket Elevator

Material conveyed: Marble powder

Processing capacity: 30 t/h

Elevating height: 21 meters

Feed particle size: Powder

Material bulk density: 1.6 t/m³

Bucket elevator model: TD315-21m

Since marble powder is a fine powder-like loose material, the equipment design not only needs to meet the specified conveying capacity and elevating height, but also needs to fully consider the flow characteristics of the powder, sealing, and possible dust generation during operation. The Bucket Elevator itself is suitable for vertical transportation of powder, granular and small block-shaped loose materials; for powder applications, reasonable hopper configuration, inlet and outlet structures, and casing sealing are important for stable transportation and reducing material spillage.

In this project, the design height of TD315-21m is 21 meters, which is within the common application range of the TD series bucket elevators. EXCT configures the equipment structure and related components according to the customer's processing capacity, material properties, and on-site elevating height to meet the continuous vertical transportation requirements of the project.

Manufacturing and Assembly

The components of the bucket elevator are manufactured, structured, welded, assembled and inspected before leaving the factory in the factory. During the manufacturing process, the casing, flanges, feeding and discharging components, drive components and other structural parts are processed and assembled according to the production drawings.

For the TD315-21m bucket elevator, the equipment manufacturing quality mainly involves aspects such as the size of the casing, the installation accuracy of the upper and lower components, the assembly of the drive system, the centerline of the traction components, and the installation of the hopper. After assembly, corresponding size, connection and assembly checks are carried out on the equipment to prepare for subsequent packaging and transportation.
